We design and manufacture pressure sensors ranging from the sensing element to system packaging for harsh environments. We are an industry leader for our range of both standard and custom pressure sensors, from board level components to fully amplifi ed and packaged transducers. Based on piezoresistive Microelectromechanical (MEMS) and silicon strain gage (Microfused, Krystal Bond) technology, our sensors measure everything from inches of water column (<5 mbar) to 100K psi (7K bar). Sophisticated design and advanced manufacturing techniques create reliable cost-eff ective solutions for medical, HVACR, off road/heavy equipment and general industrial applications. We manufacture one of the world’s lowest power and smallest package pressure sensors for altimeter/NAV applications. Our sensors are signal conditioned, calibrated over temperature and include digital or analog outputs.
Board Level Pressure Sensors
Digital output and Altimeter
| Package |
8 pin DIL
|
Surface mountable
|
Surface mountable
|
Surface mountable
|
| Type |
Gage, compound (MS4515DO)
Gage, absolute, differential, compound (MS4525DO)
|
Absolute
|
Absolute
|
Absolute
|
| Feature Range |
0 - 2 to 30" H2O (MS4515DO)
0 - 1 to 150 psi (MS4525DO)
|
0 - 1 to 30 bar
|
0 - 2 bar
0 - 30 bar
|
0 - 2 bar
Operating range: 300 to 1200 mbar
|
| Output/ Span |
14-bit ADC SPI or I2C
|
24-bit ADC I2C and SPI (Mode 0, 3)
|
24-bit ADC I2C
|
24-bit ADC I2C
|
| Resolution |
--
|
12 μbar (MS5803-01BA) 0.5 mbar (MS5803-30BA)
|
0.016 mbar (2 bar) 0.2 mbar (30 bar)
|
13 cm of air
|
| Unique Features |
Optional gel coat, low power
Pressure and temperature measurement
Single supply of 3.3 or 5.0 VDC
Top, side barbed or manifold o-ring port
J lead or thru hole pins
|
24-bit digital sensor, software calibration and temperature compensation (I2C and SPI), no external components
Supply voltage 1.8 to 3.6 V
|
Supply voltage: 1.5 to 3.6 V
Pressure and temperature measurement
Excellent long term stability
Hermetically sealable for outdoor devices
Sealing designed for 1.8 x 0.88 mm o-ring
|
Supply voltage: 1.5 to 3.6 V
Pressure and temperature measurement
Low power, 0.6 A (standby 0.1 A at 25°C)
Protected against direct sunlight
|
| Linearity/AbsoluteAccuracy |
0.25%/1% TEB
|
±1.5 mbar at 25°C (MS5803-01BA) ±250 mbar at 0°C to 40°C (MS5803-30BA)
|
±.5 mbar (2 bar)
±400 mbar (30 bar)
|
±0.5mbar at 20°C
±4mbar from -20°C to 85°C
|
| Overpressure |
300 psi
|
10 bar (1, 2 bar)
30 bar (5, 7, 14 bar)
50 bar (30 bar)
|
10 bar (2 bar)
50 bar (30 bar)
|
--
|
| Operating Temperature |
-10°C to 85°C (MS4515DO)
-25°C to 105°C (MS4525DO)
|
-40°C to 85°C
|
-20°C to 85 °C
|
-20°C to 85 °C
|
| Dimensions (mm) |
12.5 x 9.9
|
6.4 x 6.2 x 2.9
|
3.3 x 3.3 x 2.75
|
3.3 x 3.3 x 1.7mm
|
| Typical Applications |
Medical instruments, air flow measurements, process control, leak detection
|
Precision altimeter, diving and multi-mode watches, in-building navigation, variometers/flight instruments
|
Mobile water depth measurement systems, diving computers, adventure or multimode watches, data loggers
|
Altimeter and barometerapplications, adventureor multi-mode watches, drones, bike computers
|
|
Package
|
SOIC-14
|
Surface mountable
|
Surface mountable
|
Surface mountable
|
|
Type
|
Gage, absolute, differential, compound
|
Absolute
|
Absolute
|
Absolute
|
|
Pressure Range
|
0 - 1 to 30 psi
|
10 - 2K mbar
|
10 - 2K mbar
|
10 - 2K mbar
|
|
Output/ Span
|
24-bit ADC SPI or I2C protocol
|
24-bit ADC I2C
|
24-bit ADC I2C
|
24-bit ADC I2C
|
|
Resolution
|
--
|
0.016 mbar
|
0.02 mbar
|
0.016 mbar
|
|
Unique Features
|
24-bit digital small outline sensor
Pressure and temperature measurement
Single supply of 1.8 or 3.6 VDC
Barb, tube and hole package style options
|
24-bit digital sensor
13 cm resolution (MS5607, MS5637)
10 cm resolution (MS5611)
Supply voltage: 1.5 to 3.6 V (MS5637) Supply voltage: 1.8 to 3.6 V
(MS5607, MS5611)
Low power, 0.6 μA (Standby 0.1 μA at 25°C)
|
24-bit digital sensor
20 cm resolution
Supply voltage: 1.8 to 3.6 V
Sealing designed for 2.5 x 1 mm o-ring
Silicone gel protection
Waterproof
|
Integrated pressure, humidity and temperature
Supply voltage: 1.5 to 3.6 V
Fully factory calibrated sensor
|
|
Linearity/Absolute
Accuracy
|
0.25%/2.5% TEB
|
±2.0 mbar at 25°C
|
±2.0 mbar at 25°C
|
±4 mbar
|
|
Overpressure
|
3X range
|
6 bar
|
5 bar
|
6 bar
|
|
Operating Temperature
|
-40°C to 125°C
|
-40°C to 85°C
|
|
-20°C to 85 °C
|
|
Dimensions (mm)
|
12.5 x 7.9
|
3 x 3 x 0.9 (MS5637) 5 x 3 x 1 (MS5607, MS5611)
|
4.5 x 4.5 x 3.5
|
5 x 3 x 1
|
|
Typical Applications
|
Medical respirators, ventilators, factory automation, altitude and airspeed measurements, leak detection, home appliances
|
Smart phones, tablets, personal navigation devices, tire pressure monitoring, compressors
|
Mobile altimeter and barometer systems, bike computers, adventure or multi-mode watches, variometers, data loggers
|
Mobile water depth measurement systems, diving computers, adventure or multi-mode watches, data loggers
|
Amplified Output
|
Package
|
8 pin DIL |
SOIC-14 |
|
Type
|
Gage, differential (MS4515) Gage, absolute, differential, compound (MS4525) |
Gage, absolute, differential, compound |
|
Feature Range
|
0 - 2 to 30” H2O (MS4515)
0 - 1 to 150 psi (MS4525)
|
0 - 1 to 30 psi |
|
Operating Temperature
|
10% to 90% or 5% to 95% of supply |
10 - 90% VDC |
|
Unique Features
|
Ratiometric analog output sensor
Single supply of either 3.3 or 5.0 VDC
Top, side barbed or manifold o-ring port
J lead or thru-hole pins
Optional gel coat
|
Temperature compensated
2.75 to 5.5 VDC supply voltage
Amplified ratiometric analog output
Barb, tube and hole package style options
|
|
Accuracy
|
0.25% span/1% TEB |
±0.5% span/2.5% TEB |
|
Operating Temperature
|
-10°C to 85°C (MS4515), -25°C to 105°C (MS4525) |
-25°C to 105°C |
|
Dimensions (mm)
|
12.5 x 9.9 |
12.5 x 7.9 |
|
Typical Applications
|
Medical instruments, air flow measurements, process control, leak detection
|
Factory automation, altitude and airspeed measurements, medical instruments, leak detection
|
MV Output
|
Package
|
8 pin DIL
|
TO-8
|
6 pin DIL
|
|
Type
|
Gage, absolute, differential
|
Gage, absolute, differential
|
Gage, absolute, differential
|
|
Pressure Range
|
0 - 5 and 10” H2O 0 - 1 to 100 psi
|
0 - 1 to 250 psi
|
0 - 1 to 300 psi
|
|
Output/ Span
|
50 mV and 100 mV typical
|
100 mV typical
|
60 mV, 90 mV, 100 mV, and 150 mV typical
|
|
Unique Features
|
Temperature compensated
High performance UltraStable die (1230, 1240)
Current excitation (1210, 1230)
Voltage excitation (1220, 1240)
|
Temperature compensated
High performance
UltraStable die (17, 27, 37, 47)
Can gel fill for humid conditions
|
Temperature compensated
High performance UltraStable die
Voltage excitation
|
|
Accuracy
|
±0.1% non-linearity
|
±0.1% non-linearity
|
±0.1% non-linearity
|
|
Operating Temperature
|
-40°C to 125°C
|
-40°C to 125°C
|
-25°C to 85°C
|
|
Dimensions (mm)
|
15.2 x 14.7
|
Ø11.4, application dependent
|
15.2 x 13.7
|
|
Typical Applications
|
Medical instruments, air flow measurement, process control, factory automation, leak detection
|
Medical instruments, air flow measurement, HVACR, process control, factory automation, leak detection
|
Drop-in for 6 pin industrial sensor for PCB mounted medical
|
|
Package
|
Surface mountable |
Surface mountable |
|
Type
|
Gage, absolute |
Gage, absolute |
|
Pressure Range
|
0 - 5 to 500 psi |
0 - 1 to 12 bar |
|
Output/ Span
|
60 mV typical |
150 mV, 240 mV |
|
Unique Features
|
Low cost
Coarse calibrated at room temp. (MS1471)
With gel to protect against moisture
Tube or hole
|
Small size (MS54xx)
High linearity or high sensitivity options
Plastic tube or metal ring options
With gel to protect against moisture
High endurance (Option HM)
|
|
Accuracy
|
±0.25% non-linearity |
±0.05%, ±0.15% FS non-linearity (MS52xx)
±0.05%, ±0.2% FS non-linearity (MS54xx)
|
|
Operating Temperature
|
-40°C to 125°C |
-40°C to 125°C
|
|
Dimensions (mm)
|
7.6 x 7.6, application dependent |
7.6 x 7.6, application dependent (MS52xx) 6.4 x 6.2 (MS54xx) |
|
Typical Applications
|
Altitude measurement, barometric pressure, medical instrumentation, consumer appliances, tire pressure
|
Absolute pressure sensor systems, engine controls, high resolution altimeters, variometers, waterproof watches, diver computers, barometers, tire pressure monitoring systems (TPMS), medical instrumentation, pneumatic controls
|
Disposal Medical Pressure Sensors - mV Output
|
Package
|
Hybrid assembly |
Plastic housing |
|
Type
|
Gage |
Gage |
|
Pressure Range
|
-30 to 300 mmHg |
-30 to 300 mmHg |
|
Output/ Span
|
5 μV/V/mmHg |
5 μV/V/mmHg |
|
Operating Temperature
|
|
|
|
Unique Features
|
10°C to 40°C |
10°C to 40°C |
|
Accuracy
|
|
|
|
Dimensions (mm)
|
1620: 11.43 x 8.13 x 4.20 1630: 12.7 x 5.08 x 3.94 |
42.8 x 30.3 x 19.0 |
|
Typical Applications
|
Disposable blood pressure, surgical procedures, ICU, kidney dialysis machines, medical instrumentation
|
Disposable blood pressure, kidney dialysis machines, surgical procedures and intensive care units. Ready to use, fully assembled disposable sensor units with cable, connector, stop cock, flush device in a plastic housing
|
Media isolated Pressure Sensor Modules - Digital Output
|
Package
|
13 mm diaphragm diameter
Weldable or threaded process fittings
|
16 mm diaphragm diameter
O-ring mount
|
9 mm diaphragm diameter
Threaded or weldable
|
19 mm diaphragm diameter
O-ring mount
|
|
Type
|
Gage, absolute |
Gage, absolute |
Absolute, sealed gage |
Gage, absolute |
|
Pressure Range
|
0 - 0.35 to 20 bar / 0 - 5 to 300 psi |
0 - 0.07 to 20 bar / 0 - 1 to 300 psi |
0 - 6 to 30 bar |
0 - 1 to 300 psi |
|
Output/ Span
|
14-bit ADC I2C or SPI |
14-bit ADC I2C or SPI |
24-bit ADC I2C |
14-bit ADC I2C or SPI |
|
Unique Features
|
Pressure and temperature read-out
Cable and connector options
Low power option
|
Pressure and temperature read-out
Cable and connector options
Low power option
|
Pressure and temperature read-out
Low power: 1 μA (Standby < 0.15 μA)
|
Pressure and temperature read-out
Cable and connector options
Low power option
|
|
Accuracy
|
± 0.25% span |
± 0.25% span |
± 0.3% span |
± 0.25% span |
|
Total Error Band
|
±1.0% FSO |
±1.0% FSO |
±3.0% FSO max. |
±1.0% FSO |
|
Overpressure
|
2X |
2X |
2X |
2X |
|
Operating Temperature
|
-40°C to 125°C |
-40°C to 125°C |
-40°C to 85°C |
-40°C to 125°C |
|
Dimensions
|
Ø15.85 x 7.9 |
Ø15.82 x 9.3 |
Ø9.04 x 7.5 |
Ø19 x 13.8 |
|
Typical Applications
|
Level controls, tank level measurement, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, submersible depth monitoring
|
Level controls, tank level measurement, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, submersible depth monitoring
|
Level controls, tank level measurement, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, dive computers
|
Level controls, tank level measurement, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, submersible depth monitoring
|
Transducers and Transmitters - Industrial
|
Type
|
Gage, sealed, absolute, compound |
Gage |
Gage |
|
Pressure Range
|
0 – 50 to 15K psi (M5600), 0 – 5 to 10K psi (U5600)
|
0 - 100 to 500 psi |
0 - 100 to 10K psi (MSP300)
0 - 50 to 10K psi (MSP340)
|
|
Output/ Span
|
24-bit ADC I2C |
100 mV typical |
0 - 100 mV, 0.5 - 4.5 VDC,
1 - 5 VDC, 4 - 20 mA
|
|
Unique Features
|
Wireless connection
Pressure and temperature
2.3 – 3.6 V supply voltage
Compact and battery-powered
Weather resistant (IP66 and IP67)
Stainless steel and polycarbonate enclosure
|
Microfused
Low cost stainless steel isolated transducer
No threads needed for pressure connect
Highly customized for OEM application
Small size
Solid state reliability
|
Microfused
Highly customized for OEM applications
Small size
Solid state reliability
|
|
Accuracy
|
±0.25% FS (M5600)
Down to ±0.1% FS (U5600)
|
±0.5% FSO |
±1% FSO |
|
Operating Temperature
|
-20°C to 85°C |
0°C to 55°C |
-20°C to 85°C |
|
Dimensions (mm)
|
24 x 24 x 69 |
12.7 x 24.38 x 20.32 |
MSP300: 22.23 x 22.23 x 55.88
MSP340: 15.88 x 15.88 x 75.44
|
|
Typical Applications
|
Industrial process control and monitoring, advanced HVACR systems, refrigeration systems, automotive test stands, off-road vehicles, pumps and compressors, hydraulic and pneumatic systems, agriculture equipment, energy generation and management
|
Beverage dispensing systems, automation, HVACR controls, energy and water management, pumps, compressors, pneumatic equipment
|
Paint sprayers, braking systems, HVACR controls, energy and water management, pumps, compressors, pneumatic equipment, off road heavy equipment, agriculture equipment
|
|
Agency Approvals
|
CE, FCC |
-- |
UL 508 (MSP300) |
Media Isolated Pressure Sensor Modules - Analog Output
|
Package
|
Weldable (85) or process fitting |
Weldable or process fitting |
5/8” (16 mm) diameter o-ring mount |
|
Type
|
Gage, absolute, vacuum gage |
Sealed gage, absolute |
Gage, absolute |
|
Pressure Range
|
0 - 5 to 500 psi (85), 0 - 1 to 500 psi (82)
|
0 - 1K to 10K psi |
0 - 1 to 150 psi
|
|
Output/ Span
|
100 mV typical |
100 mV typical |
0.5 - 4.5 VDC |
|
Unique Features
|
Modular design |
High pressure
Modular design
|
Small diameter, amplified output
Bar ranges available
|
|
Non-linearity
|
±0.3% FSO (1 psi)
±0.2% FSO (5 psi)
±0.1% FSO (≥15 psi)
|
±0.25% FSO |
±1% FSO |
|
Operating Temperature
|
-40°C to 125°C |
-40°C to 125°C |
-20°C to 85°C |
|
Dimensions (mm)
|
Fittings: application dependent |
89 Button: Ø9.04 x 13.2
89 with Fittings: application dependent
|
Ø15.82 x 9.3 |
|
Typical Applications
|
Medical, process control, refrigeration compressor, oceanography, level systems
|
Air tank pressure, hydraulics, process control, robotics, refrigeration compressors, oceanography
|
Level measurement, OEM transmitters and transducers, process control
|
|
Package
|
3/4" (19 mm) diameter o-ring mount (82, 154N)
5/8" (16 mm) diameter o-ring mount (86)
1/2" (13 mm) diameter o-ring flush mount (85F)
1/2" (13 mm) diameter o-ring mount (85)
|
5/8" (16 mm) diameter o-ring mount or threaded process fittings
|
Mountable with o-ring seal |
|
Type
|
Gage, absolute, vacuum gage (82, 85, 86, 154N) Gage, absolute (85F)
|
Differential |
Sealed gage, absolute |
|
Pressure Range
|
0 - 1 to 500 psi (Absolute, gage: 82, 154N)
0 - 5 to 500 psi (Absolute, gage: 85, 86)
0 - 15 to 500 psi (85F, vacuum gage: 82, 85, 86, 154N)
|
0 - 1 to 500 psi |
0 - 5 to 13 bar/0 - 50 to 200 psi
|
|
Output/ Span
|
100 mV typical |
100 mV typical/sensitivity dependent |
0.5 - 4.5 VDC (Ratiometric output)
|
|
Unique Features
|
High performance
High stability for OEM applications
Minimizes trapped volume (85F)
|
Wet/wet differential pressure
Line pressure max. 1,000 psi
|
Amplified
|
|
Non-linearity
|
±0.3% FSO (1 psi), ±0.2% FSO (5 psi)
±0.1% FSO (≥15 psi), ±0.1% FSO (85F)
|
±0.3% FSO (1 psi)
±0.2% FSO (5 psi)
±0.1% FSO (≥15 psi)
|
±0.5% FSO |
|
Operating Temperature
|
-40°C to 125°C (82 / 85 / 86 / 154N), -20°C to 125°C (85F)
|
-40°C to 125°C |
-7°C to 105°C |
|
Dimensions (mm)
|
82: Ø19 x 6.48
86: Ø15.82 x 11.4
54N: Ø18.97 x 13.8
85F: Ø17.2 x 11.33
85: Ø15.85 x 9.3
|
O-ring: Ø15.82 x 17.5
Fittings: Application dependent
|
Ø15.82 x 13.6
Socket spacing: 31.75
|
| Typical Applications |
Hydraulic controls, process control, oceanography, refrigeration/compressors, pressure transmitters, level systems, dialysis machines, infusion pumps, medical systems
|
Level controls, tank level measurement, corrosive fluids and gas measurement systems, flow measurement
|
Urea level, urea pressure, air brakes,corrosive fluid measurement for engine & vehicle applications
|
Transducers and Transmitters - Industrial
|
Type
|
Gage, absolute |
Gage, sealed gage, absolute |
Gage, sealed gage, compound |
|
Pressure Range
|
0 - 15 to 5K psi
|
0 - 1 to 60K psi |
0 - 25 to 10K psi
|
|
Output/ Span
|
0 - 10 mV/V, 0.5 - 4.5 V, 1 - 5 V, 4 - 20 mA |
0.5 - 4.5 V (Ratiometric) 1 - 5 V 4 - 20 mA, 0 - 5 V, 0 - 10 V, switch (AST20SW)
|
0.5 - 4.5 V (Ratiometric), 1 - 5 V, 1 - 10 V, 4 - 20 mA, 0.5 - 2.5 V
|
|
Unique Features
|
UltraStable technology
Highly customized for OEM applications
Small size
Solid state reliability
|
Excellent performance over temperature
Semi-custom designs available
Fault mode condition settings
Four standard sensor material options
Additional temperature output (AST20PT)
|
Four standard sensor material options
Rugged construction
100 V/m EMI/RFI protection
Semi-custom designs available
|
|
Accuracy
|
±0.15% FSO (15 - 1K psi), ±0.25% FSO (>1K psi) |
±0.1% FSO |
±0.5% FSO |
|
Operating Temperature
|
-40°C to 105°C |
-40°C to 85°C |
-40°C to 85°C |
|
Dimensions (mm)
|
15.88 x 15.88 x 98.00 |
Application dependent |
Application dependent |
|
Typical Applications
|
Paint sprayers, braking systems, HVACR controls, energy and water management, pumps, compressors, pneumatic equipment, off road heavy equipment, agriculture equipment
|
Test and measurement, industrial controls
|
Water, hydraulic equipment, HVACR, industrial controls
|
|
Agency Approvals
|
-- |
ABS, CE |
UL/cUL508, ABS, CE |
|
Type
|
Gage, Compound |
Gage, sealed, compound |
Gage, sealed, absolute, compound |
Differential wet/wet |
|
Pressure Range
|
0-7bar to 500 bar / 0-100 to 7,500 Psi
|
0 - 3.5 to 1K bar/0 - 50 to 15K psi |
0 - 0.14 to 700 bar/0 - 2 to 10K psi |
0 - 0.07 to 35 bar/0 - 1 to 500 psi
|
|
Output/ Span
|
100mV, 0.5 - 4.5 V, 1 - 5 V, 0 - 5 V, 0 - 10 V, 4 - 20 mA and I2C Digital Output
|
0.5 - 4.5 V, 1 - 5 V, 0 - 5 V, 0 - 10 V, 4 - 20 mA, 1 - 6 V
|
0.5 - 4.5 V, 1 - 5 V, 0 - 5 V, 0 - 10 V, 4 - 20 mA, 1 - 6 V
|
80 mV / 100 mV, 0.5 - 4.5 VDC, 1 - 5 VDC, 4 - 20 mA
|
|
Unique Features
|
Microfused technology
High performance at a low cost
Solid state reliability
±1.5% FSO TEB (-20°C to 85°C)
Weatherproof - IP67 with cable
14bit digital output for Pressure
|
Microfused technology
High performance at a low cost
Solid state reliability
±1% FSO TEB (-20°C to 85°C)
Weatherproof
17 - 4 PH or 316L SS
|
UltraStable technology
High performance at a low cost
±0.75% FSO TEB (-20°C to 85°C, >5 psi and 5000 psi) (U5200)
±0.5% FSO TEB (-20°C to 85°C) (U5300)
Weatherproof
High accuracy (U5300)
|
UltraStable technology
High performance at a low cost
Solid state reliability
±1% FSO TEB (-20°C to 85°C)
Line pressure max. 1000 psi
|
|
Accuracy
|
±0.25% FSO |
±0.25% FSO |
±0.1% FSO (>5 and 500 psi) |
±0.3% FSO (<5 psi), ±0.25%
FSO (5 psi), ±0.1 % FSO (15 psi)
|
|
Operating Temperature
|
-40°C to 125°C |
-40°C to 125°C |
--40°C to 125°C |
-40°C to 125°C |
|
Dimensions
|
22.2 on Hex x 58 max |
24 X 24 X 82 max. |
24 X 24 X 82 max. |
25.4 x 58.4 x 72.0 |
|
Typical Applications
|
Suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
|
Industrial process control and monitoring, advanced HVACR systems, refrigeration systems, automotive test stands, off road vehicles, pumps and compressors, hydraulic and pneumatic systems, agriculture equipment, energy generation and management
|
Industrial process control and monitoring, advanced HVACR systems, refrigeration systems, automotive test stands, off road
vehicles, pumps and compressors, hydraulic and pneumatic systems, agriculture equipment, energy generation and management, military and aerospace test stands, calibration equipment, high accuracy applications, stationary motor fuel control, high end industry machinery
|
Process controls, tank level measurement, filter performance monitoring, corrosive fluids and gas measurement systems, flow measurement
|
|
Agency Approvals
|
CE (EMC)CE (EMC)
|
CE (EMC)
|
CE (EMC), UL 508
|
CE (EMC)
|

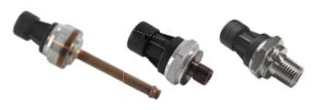

Transducers and Transmitters - Heavy Industrial
|
Type
|
Gage, no vent gage (M7100) Gage, sealed gage, absolute (U7100)
|
Gage, absolute |
Gage |
|
Pressure Range
|
0 - 10 to 700 bar/0 - 150 to 10K psi (M7100)
0 - 1 to 10 bar/0 - 15 to 150 psi (U7100)
|
0 - 5 bar to 700 bar/0 - 75 to 10K psi |
0 - 10 to 7K bar/0 - 150 to 100K psi
|
|
Output/ Span
|
0.5 - 4.5 VDC [Ratiometric output] 1 - 5 VDC [Regulated] (M7100) 0.5 - 4.5 VDC [Ratiometric output] (U7100)
|
0 - 5 VDC, 0 - 10 VDC, 4 - 20 mA |
7.5 to 20 mV (4 V; 5 V optional)
|
|
Unique Features
|
±1% FSO TEB (-20°C to 85°C)
Solid state reliability
Survives high vibration and immersion
Microfused technology (M7100)
UltraStable technology (U7100)
Copper tube for HVACR (M7100)
|
High overpressure (10X over pressure)
Shock and vibration resistant
Heavy industrial grade transducer (P9000)
Advanced digital compensation / calibration
Mechanical over pressure stops
High temperature operation
|
Stainless steel diaphragm
Female pressure connectors: M16 x 1.5, M20 x 1.5, 1/4 NPT
Metal to metal seal
|
|
Accuracy
|
0.25% FSO |
0.1% to 0.2% FSO |
±0.3% FSO |
|
Operating Temperature
|
-40°C to 125°C |
-54°C to 120°C |
-20°C to 80°C |
|
Dimensions (mm)
|
26.7 x 26.7 x 50.0 |
Application dependent |
Ø29 x 85 max. |
|
Typical Applications
|
HVACR refrigeration controls, off road vehicles engine control, compressors, hydraulic, energy and water management
|
Steel mills, hydraulic controls, power generation equipment, torpedo depth, military and aerospace, vehicle braking systems
|
Harsh environments, aggressive liquids
|
|
Agency Approvals
|
CE (EMC), UL 508 |
CE, CENELEC (Intrinsically Safe) |
-- |
Transducers and Transmitters - Miniature
|
Type
|
Gage, sealed, absolute |
Gage, sealed, absoluteGage |
|
Pressure Range
|
0 - 1 to 350 bar/0 - 15 to 5K psi (XP5, XPM10)
0 - 5 to 200 bar/0 - 75 to 3K psi (XPM4)
0 - 100 to 1K bar/0 - 1.5K to 15K psi (XPM6)
|
0 - 10 to 500 bar/0 - 150 to 7.5K psi |
|
Output/ Span
|
20 - 100 mV, 4 V FSO (Amplified) |
12 mV FSO, 4 V FSO (Amplified) |
|
Operating Temperature
|
-40°C to 120°C |
-40°C to 220°C |
|
Unique Features
|
Titanium construction (XP5, XPM4)
Stainless steel housing (XPM6, XPM10)
Amplified output options (XP5, XPM6, XPM10)
Cable and connector options
For static and dynamic applications
|
Amplified output available
For static and dynamic applications
Optional IP67 ingress protection
High temperature operation
|
|
Accuracy
|
Down to ±0.25% FSO (XP5, XPM6, XPM10), down to ±0.35% FSO (XPM4) |
Down to ±0.25% FSO |
|
Dimensions (mm)
|
XPM4: M4 x 0.7 thread; Hex 8
XP5: M5 x 0.8 or 10-32 UNF thread; Hex 10
XPM6: M6 x 1 thread; Hex 12
XPM10: M10 x 1 thread; Hex 15
|
M10 x 1 or 3/8-24 UNF thread; Hex 15 |
|
Typical Applications
|
Corrosive liquids and gases, braking system pressure, onboard equipment monitoring, military and aerospace, explosive test benches, robotics and effectors, laboratory and research, extreme miniature devices
|
Aerospace, test benches, oven monitoring equipment, cooling regulation systems
|
|
Type
|
Gage, sealed, absolute |
Gage, sealed, absolute |
Gage, sealed, absolute |
|
Pressure Range
|
0 - 0.35 to 700 bar/0 - 5 to 10K psi |
0 - 0.35 to 20 bar/0 - 5 to 300 psi |
0 - 0.35 to 350 bar/0 - 5 to 5K psi
|
|
Output/ Span
|
0.5 to 4.5 VDC |
12 mV to 75 mV |
10 mV to 125 mV |
|
Unique Features
|
High accuracy
Miniature design
UltraStable technology
EMI protected
Combined pressure and temperature
|
Diffused silicon diaphragm with a large variety of sizes and shapes available as small as 0.05” outside diameter
High frequency response (To 1.7 MHz)
Ultra-miniature design
|
Miniature flush mountable
Flush stainless steel diaphragm, flanged or non-flanged
Bonded silicon gage, high frequency response (To 400 KHz)
IP68 ingress protection in Titanium construction (EPB-PW)
|
|
Accuracy
|
0.25% FSO |
±1.0% FSO |
±0.5 to ±1% FSO |
|
Operating Temperature
|
-40°C to 125°C (Available option up to 150°C) |
-40°C to 120°C |
-40°C to 120°C |
|
Dimensions (mm)
|
11 body diameter |
Application dependent |
3.2 to 7 outside diameter |
|
Typical Applications
|
Motor sport, hydraulic/pneumatic systems, automotive test stands, military and aerospace test stands
|
Aerospace testing, wind tunnels, biomedical testing, aircraft body and wing dynamics, high frequency measurements
|
Air flow testing, hydraulic pressure systems, air pressure systems, bearing studies, ballistics, water hammer, miniature scale model testing, centrifuge pore water pressure measurements
|
|
Agency Approvals
|
CE (EMC) |
-- |
-- |
Transducers and Transmitters - Liquid Level
|
Type
|
Gage, sealed, absolute, compound |
Gage, absolute |
|
Pressure Range
|
0 - 2 to 10K psi
|
0 - 1 to 100 psi (AST4500, AST4510, AST4520) |
|
Output/ Span
|
0.5 - 4.5 V, 1 - 5 V, 0 - 5 V, 0 - 10 V, 4 - 20 mA, 1 - 6 V |
0.5 - 4.5 V [Ratiometric], 1 - 5 V, 4 - 20 mA, 0.5 - 2.5 V |
|
Operating Temperature
|
-40°C to 120°C |
-40°C to 220°C |
|
Unique Features
|
UltraStable technology
High accuracy
IP68 rated connection and submersible
Polyurethane jacketed cable
Optional Polyoxymethylene cap
|
Intrinsically safe ratings
Material options including: 316L, alloy C276, and PVDF
Low power options
High quality cable options
|
|
Accuracy
|
0.1 % FSO |
±0.25% FSO |
|
Operating Temperature
|
-10°C to 60°C |
-40°C to 85°C |
|
Dimensions (mm)
|
22.23 x 22.23 x 98.04
|
Application dependent |
|
Typical Applications
|
Industrial process control and monitoring, advanced HVACR systems, refrigeration systems, automotive test stands, off road vehicles, pumps and compressors, hydraulic/ pneumatic systems, agriculture equipment, energy generation and management, liquid level applications
|
Diesel tanks, chemical tanks, water tanks |
|
Agency Approvals
|
|
UL/CSA Class I Div I, ATEX/IECEx Exia, ABS, CE |

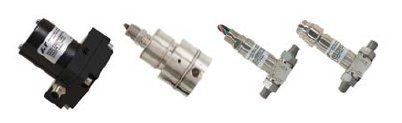

Transducers and Transmitters - Hazardous Location
|
Type
|
Gage, sealed gage, compound, absolute |
Gage, sealed gage, compound, absolute |
|
Pressure Range
|
0 - 1 to 15 psi (AST43LP, AST44LP) 0 - 25 to 20K psi (AST4300, AST4400, AST4401)
|
0 - 1 to 20K psi |
|
Output/ Span
|
0.5 - 4.5 V [Ratiometric], 1 - 5 V, 4 - 20 mA, 0.5 - 2.5 V |
0.5 - 4.5 V [Ratiometric], 1 - 5 V, 4 - 20 mA,
0.5 - 2.5 V, switch (AST46SW)
|
|
Operating Temperature
|
-40°C to 85°C |
-40°C to 85°C |
|
Unique Features
|
Available with 316L, Hastalloy C276, or Inconel 718 materials
Low current consumption options
Low power options
High proof and burst pressure
|
Available with 316L, Hastalloy C276, or Inconel 718 materials
Low current consumption options
Low power options
Local display (AST46DS)
Additional temperature output
|
|
Accuracy
|
0.1 % FSO |
±0.25% FSO |
|
Operating Temperature
|
-40°C to 85°C |
-40°C to 85°C |
|
Dimensions (mm)
|
Application dependent
|
Application dependent |
|
Typical Applications
|
Compressors, well sites, ships, factory automation, SCADA equipment, offshore equipment
|
SCADA/RTU, well sites, offshore equipment, hydraulic controls |
|
Agency Approvals
|
UL/CSA Class I Div I and II, ATEX/IECEx Exia/ Exn, CCOE, CNEx, ABS, CE
|
CSA Class I/II Div I, ATEX/IECEx Exd, ABS, CE |
|
Type
|
Differential |
Gage, sealed gage |
|
Pressure Range
|
0 - 5 H2O to 5K psi |
0-10 PSI to 10000 PSI |
|
Output/ Span
|
0.5 - 4.5 V [Ratiometric], 0 - 5 V, 1 - 5 V, 4 - 20 mA |
0.5 - 4.5 V [Ratiometric] 1 - 5 V, 4 - 20 mA |
|
Operating Temperature
|
-40°C to 85°C |
-40°C to 85°C |
|
Unique Features
|
Wide range of pressures available
Full line pressure on either side without zero shifts
Hazardous location approvals (AST5300, AST5400)
|
20 bar, 448 bar, 900 bar
High pressure H2 Storage
CE EN61326
|
|
Accuracy
|
±0.25% FSO (AST5100, AST5300), 1% TEB (AST5400) |
±0.25% BFSL |
|
Operating Temperature
|
-40°C to 85°C |
-40°C to 85°C |
|
Dimensions (mm)
|
Application dependent
|
Application dependent |
|
Typical Applications
|
Filter monitoring, flow measurement, tank level measurement |
PEM fuel cells, hydrogen storage, hydrogen
filling stations, backup power
|
|
Agency Approvals
|
CSA Class I/II Div I and II, ATEX/IECEx Exd/Exn, ABS, CE |
EC-79 e24*79/2009*406/2010*0006*02 CE EN61326 |
1620, 1630
Fully Assembled 1620 (Customised per customer specifications)
Package
Hybrid assembly Plastic housing
Type
Gage Gage
Pressure Range
-30 to 300 mmHg -30 to 300 mmHg
Output/ Span
5 μV/V/mmHg 5 μV/V/mmHg
Operating Temperature
Unique Features
10°C to 40°C 10°C to 40°C
Accuracy
Dimensions (mm)
1620: 11.43 x 8.13 x 4.20 1630: 12.7 x 5.08 x 3.94 42.8 x 30.3 x 19.0
Typical Applications
Disposable blood pressure, surgical procedures, ICU, kidney dialysis machines, medical instrumentation
Disposable blood pressure, kidney dialysis machines, surgical procedures and intensive care units. Ready to use, fully assembled disposable sensor units with cable, connector, stop cock, flush device in a plastic housing
XP
XPC10
Type
Gage, sealed, absolute Gage, sealed, absoluteGage
Pressure Range
0 - 1 to 350 bar/0 - 15 to 5K psi (XP5, XPM10)
0 - 5 to 200 bar/0 - 75 to 3K psi (XPM4)
0 - 100 to 1K bar/0 - 1.5K to 15K psi (XPM6)
0 - 10 to 500 bar/0 - 150 to 7.5K psi
Output/ Span
20 - 100 mV, 4 V FSO (Amplified) 12 mV FSO, 4 V FSO (Amplified)
Operating Temperature
-40°C to 120°C -40°C to 220°C
Unique Features
Titanium construction (XP5, XPM4)
Stainless steel housing (XPM6, XPM10)
Amplified output options (XP5, XPM6, XPM10)
Cable and connector options
For static and dynamic applications
Amplified output available
For static and dynamic applications
Optional IP67 ingress protection
High temperature operation
Accuracy
Down to ±0.25% FSO (XP5, XPM6, XPM10), down to ±0.35% FSO (XPM4) Down to ±0.25% FSO
Dimensions (mm)
XPM4: M4 x 0.7 thread; Hex 8
XP5: M5 x 0.8 or 10-32 UNF thread; Hex 10
XPM6: M6 x 1 thread; Hex 12
XPM10: M10 x 1 thread; Hex 15
M10 x 1 or 3/8-24 UNF thread; Hex 15
Typical Applications
Corrosive liquids and gases, braking system pressure, onboard equipment monitoring, military and aerospace, explosive test benches, robotics and effectors, laboratory and research, extreme miniature devices
Aerospace, test benches, oven monitoring equipment, cooling regulation systems
