Precision Drop Tester (75kg)

Qty Product
Precision Drop Tester (75kg)
  • Price:
    $819115110111114112113121311171
Product Code
IDM-P0007-M1
Main Product Image
Precision Drop Tester (75kg)

The Precision Drop tester performs a vertical impact test. This is on a filled transport package by dropping a weight.

The test may be a single test to investigate the vertical impact. As well as as a part of a sequence of tests.  To measure the ability of a package to withstand a distribution system.  Thus, useful to avoid a vertical impact hazard.

The instrument has an open construction arrangement. thus, it does not restrict the test sample geometry. The Drop Tester lifts the package in such a way so as not to cause damage to the operator or package. thus, ensures safety of package.

The P0003 150kg Precision Drop Tester is also available.

Applications

  • Card board boxes
  • Pails
  • Bags
  • Containers
  • Crates

Features

  • 75kg Capacity
  • Max Drop Hieght: 2.5m
  • Adjustable minimum and maximum height for loading & dropping, via a chain hoist for positioning
  • Large Steel base for test surface and mounting 1m x 1.5m x 25mm
  • A hand-held control and foot switch are provided
  • Precise drop orientations
  • Package width and height dimensions are not restricted
  • Lifting apparatus: Electric Chain Hoist
  • Drop Forks: 300mm D x 278mm W (For packages up to 550mm D. Anything above this would require a Top Support Fixture)
  • Air Supply: 80 psi
  • Electrical: 415 VAC @ 50/60 HZ, 3 Phase
  • Dimensions: 3,000mm x 1,000mm x 1,500mm
  • Weight: 350kg OPTIONS:
  • Corner Drop
  • Set of jigs (10 degree base & lid drop) for Pails
  • Custom made base plate
  • Extended arm to support large packages
  • Different fork lengths
  • Top Support Fixture

Benefits

  • Easy to use
  • Fast results
  • Accurate

Standards

  • AS 2582.4
  • ISO 2248 Method A
  • ASTM D5276
  • ISTA

Product Video

Get a Quote

Qty Product
Precision Drop Tester (75kg)
  • Price:
    $819115110111114112113121311171

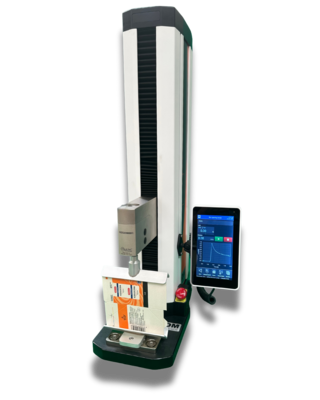

Box Opening Pressure Tester

Box Opening Pressure Tester

The Box Opening Pressure Tester measures opening force of flat stacked carton boxes. The instruments is... Product Details
  • Price:
    $819115110111114112113121311171

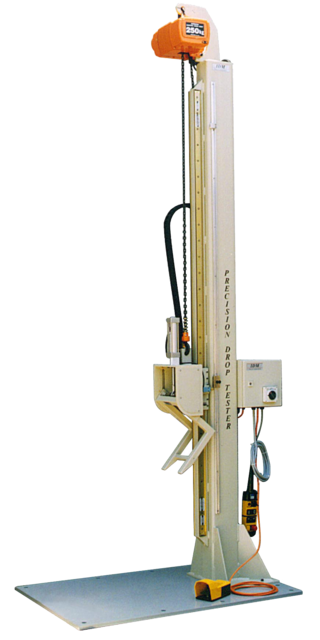

Precision Drop Tester - 150kg
