The Multi-Angle Gloss Meter has angles 20°, 60° and 85°. These are useful for measurement of specular reflection. It complied with multiple international standards like ASTM.
The applications of Multi-Angle Gloss Meter include usage in floor maintenance and surface cleaning quality control. As well as floor tiles, painted metal, plastics and composites, windows and glass. These are portable and easy to use. The instrument provide results in Gloss Units (GU). Thus, allowing analysis of specular reflection.
The ulti-Angle Gloss Meter is designed and manufactured according to ISO2813 and GB9754. It is also compatible with the standards of ASTM , ASTM, GB/T13891, GB7706, and GB8807. The technical parameters conform with JJG696-2002. The gloss values can be traced to the those of the National Primary Standards in SIMT in the P.R.China.
Main features of the Multi-Angle Gloss Meter
- One key to get 3 gloss values at a measurement. The result will be automatically stored into memory.
- Optional angle groups. You may complete a measurement at all three angles. You can also choose to do a measurement at one or two angles.
- Self-diagnosis and self-calibration.This function help to find some faults, and so you can deal with them in time.

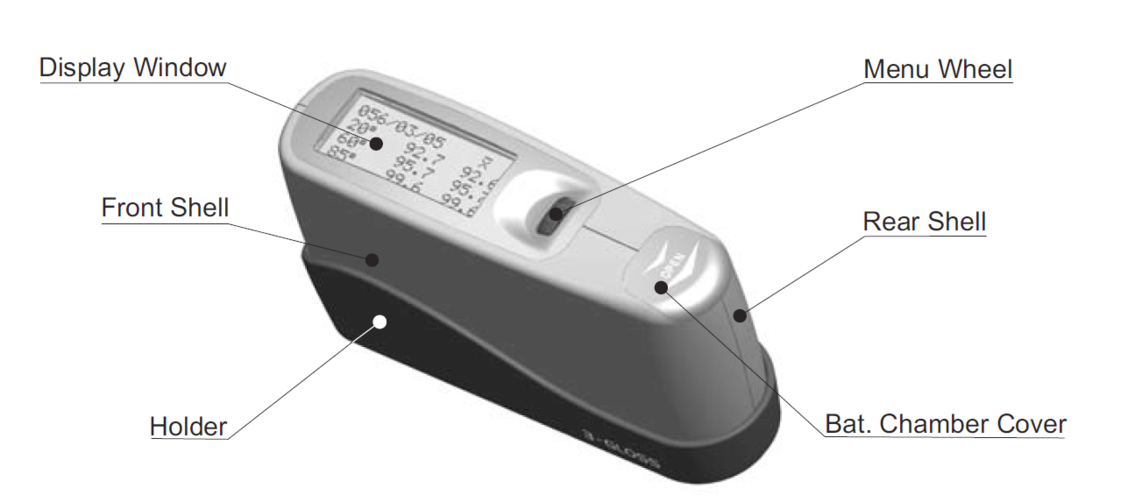

- Friendly display interface. In measurement mode, current values, averages and other information are synchronously shown on the Display Window. The clear characters and simple menus make operation more easily.
- Presettable measurement number in a group. According a requirement you can choose a proper number between 1 to 99 for a group. A correct choice will make measurement and data processing easier.
- Large memory for measurement data. In 3-angle mode, more than10000 measurements or 999 groups can be allowed to stored in ETB268-F2.
- Inquiry for data in memory. Through menu operation you can browse the data in memory
- Deleting defective measurements. By pressing Measuring Button for two seconds or more, the measurement displaying on the Display Window will be deleted. This function is only effective in current group.
- RS232 port (9 pins). Through this series port ETB268-F2 can communicate with a PC.
- Practical and friendly software. Gloss Data Operator is not only friendly but practical. It can help you to upload the data from ETB268-F2, preset the measuring c onditions, make a printout, perform data processing and export the data to an Excel document. Low power consumption. ETB268-F2 needs only a 1.2v to 1.5v DC power supply. You can choose a piece of AA battery which may be alkaline or rechargeable. An alkaline battery will support more than 20000 measurements. The power for communicating is taken from a PC.
- Prompt for low battery and full memory.
- Automatic shutoff. If no operation ETB268-F2 will be turned off by itself in a preset time interval.
