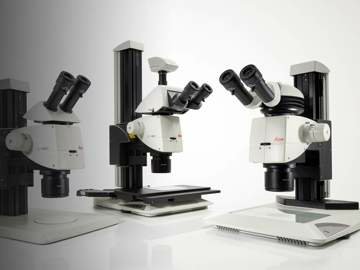

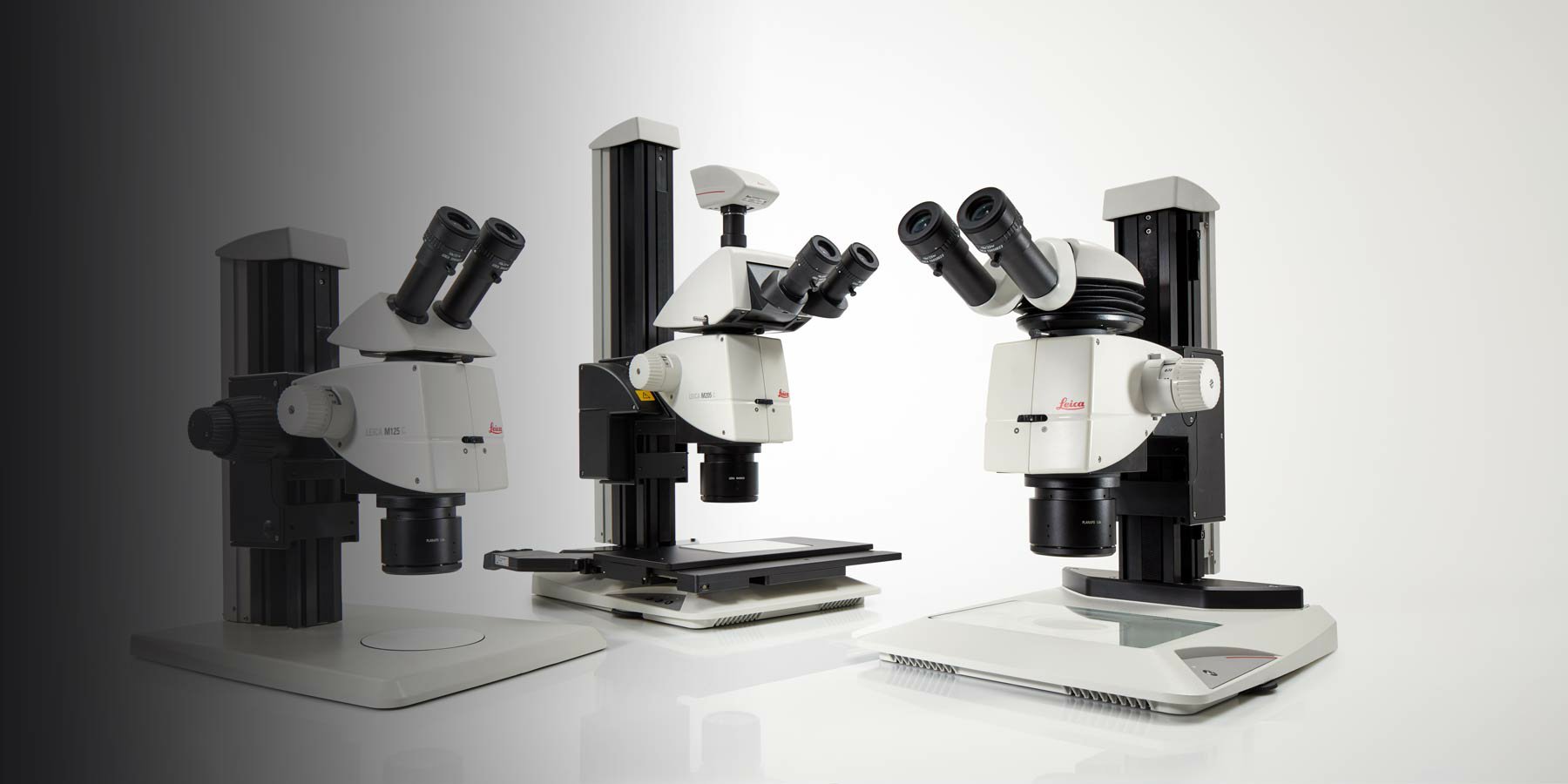

The Leica coded stereo microscopes produce high-quality images that allow measurements and can be easily and accurately repeated.
- Coded microscopes consistently deliver calibrated and comparable images

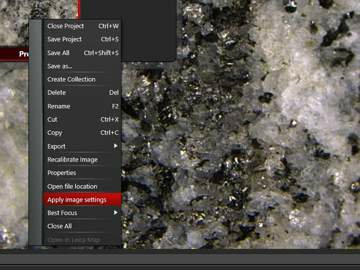

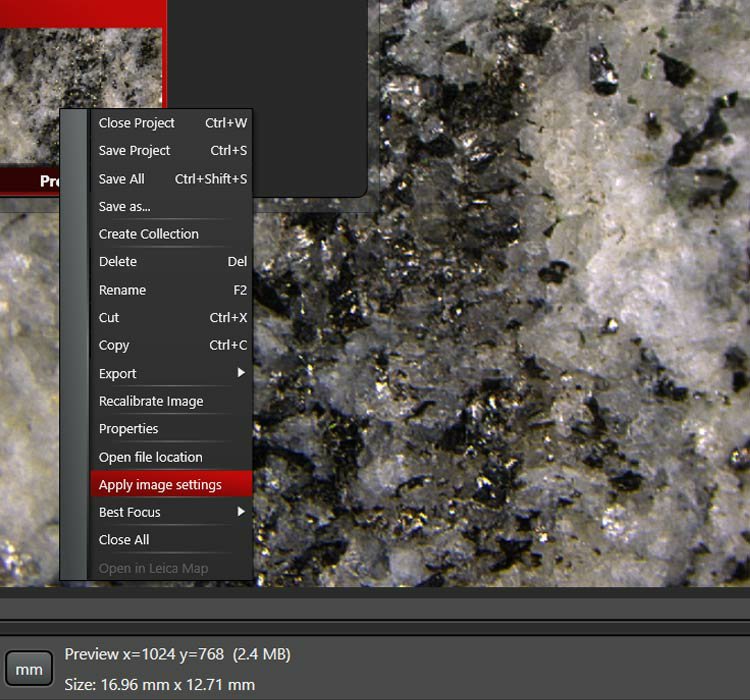

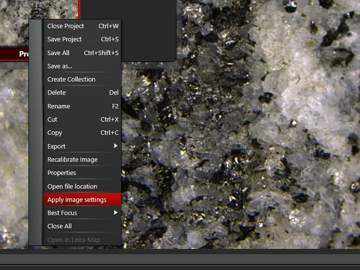

- Reproduce images in moments with the Leica “Store and Recall” function
- Fully apochromatic corrected zoom optics deliver high quality images
- Customize the microscope system to your task with the exclusive range of accessories
FusionOptics is exclusive in the M series stereo microscopes. FusionOptics uses one light beam path to deliver an image with the highest possible resolution, while the other provides an image with maximum depth of field.
FusionOptics makes it possible to have both hifh resolution and depth of field.

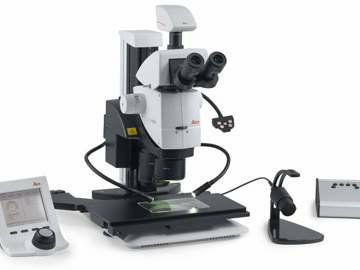

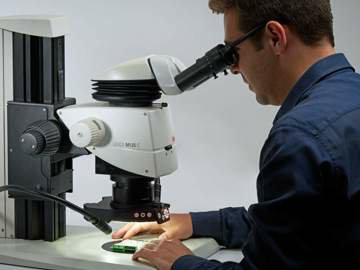

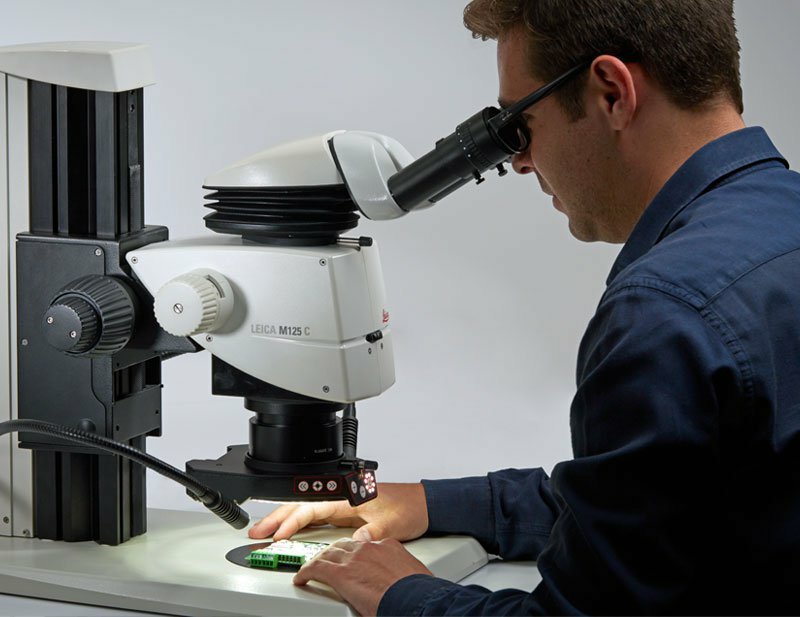

The Leica M125 C is the workhorse microscope of the M series. It has a coded zoom and apochromatic optics, offering high-end quality for mid-range budgets. Combining optimal resolution and depth of field with the integrated double iris diaphragm.
- 12.5:1 zoom
- 8x to 100x magnification
- up to 864 lp/mm resolution (with 2.0x objective)
Find out more on the Leica site
Technical Specification
| |
Leica M125 C
|
Leica M205 C, Leica M205 A
|
|
Zoom
|
12.5:1
|
20.5:1
|
|
Zoom Range
|
8x - 100x
|
7.8x - 160x
|
|
Resolution (1.0x)
Resolution (max)
|
432 lp/mm
864 lp/mm
|
525 lp/mm
1050 lp/mm
|
|
Visible Structure Width
|
579 nm
|
475 nm
|
|
Max NA*
|
0.288
|
0.35
|
|
Object Field
|
∅ 28.8 mm – 2.3 mm
|
∅ 29.5 mm –1.44 mm
|
|
Optical System
|
100 % apochromatic, CMO, lead-free
|
|
Coded functions
|
Zoom and iris diaphragm
|
|
ESD Rating
|
2×1011 Ω/mm2
discharge time <2 seconds
from 1 000 V to 100 V
|
* Dependent on complete microscope system.
