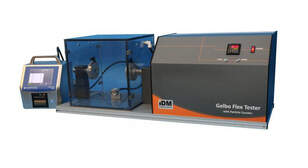

Testing Nonwoven Material - Gelbo Flex Tester

The  Gelbo Flex Tester allows testing the quality of non-woven material. As millions of masks are being manufactured and sold during COVID-19. The testing of the non-woven material is important to ensure that the face masks, protective gowns are manufactured using quality non-woven material. This is important because most non-woven materials tend to lint or shed.

Relevant Testing Standards

The Gelbo Flex Tester adheres to various testing standards including

–  ISO 9073-10 – Lint and other particles generation in the dry state

–  inda IST 160.1 – linting of nonwovens in the dry state

–  DIN EN 13795-2 – Surgical clothing and drapes – Requirements and test methods – Part 2: Clean air suits

–  YY/T 0506.4 –  Surgical drapes, gowns, and clean air suits for patients, clinical staff, and equipment–Part 4: Test method for linting in the dry state

Testing Procedure

IDM’s  Gelbo Flex Tester measures the amount of lint shed and how quickly it sheds as the non-woven material is subjected to repetitive twisting and flexing in the flexing chamber. Thereby ensuring the quality of the material. As the process continues for a specific period depending on the international testing standard referred, the air inside the testing chamber is withdrawn to the particle counter. The particle counter counts and sorts the lint particles in real-time. The Gelbo Flex tester allows statistical analysis for real-time reporting.

Particle Counter

The particle counter records the number of particles in real-time with relevance to sizing from 0.3 to 25.0 μm or 0.5 to 25.0 μm. The counter simultaneously monitors the material as per six environmental conditions such as temperature, humidity, air velocity, or differential pressure. These are recorded whilst measuring particles. It has a flow rate of 1CFM (28.3 LPM) and is able to store up to 3,000 data sets including particle and environmental data, plus location time, etc. It also prints reports on a built-in thermal printer.

Check full details here

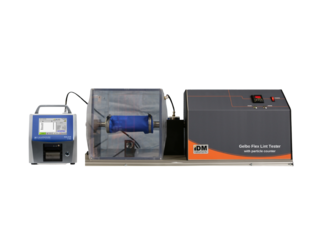

Gelbo Flex Lint Tester for textiles/ non-woven

Gelbo Flex Lint Tester with Particle Counter

The Gelbo Flex Lint Tester with Particle Counter is to measure the number of loose fibers (lint) shed from... Product Details
  • Price:

Watch Video

IDM Instrument’s Gelbo Flex Tester has gained immense trust within the nonwoven and textile industry worldwide. As the manufacturing of face masks and protective gowns, caps are increasing, IDM Instruments are ready to take the lead and efficiently manufacture the instrument.

Read more about the Gelbo Flex Tester
