Leica Microscope Colour Camera K3C

Qty Product
Leica Microscope Colour Camera K3C
  • Price:
    $819115110111114112113121311171

Options & Related Products

Product Code
L-K3C-01
Main Product Image

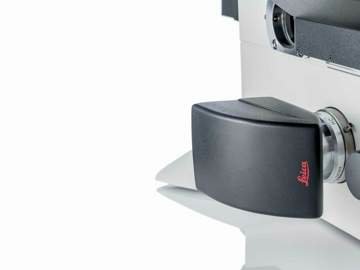

Leica K3 CMOS microscope colour camera distributed in Australia by IDM Instruments



The K3C color CMOS camera provides a well-balanced feature set with high frame rates, very good dynamic range, and excellent color reproduction. It delivers 12-bit/channel RGB quantifiable images. With the K3C & K3M microscope camera you can get an imaging system that is customized for your specific needs. You can scan and stitch images of large format samples in half the time compared to previous generation cameras. The K3C & K3M cameras are excellent, easy-to-use and set-up, low-noise devices. The color camera K3C can act as a workhorse for your laboratory or site.

Benefits of KC3 Colour CMOS camera:

  • One camera series - multiple applications and workflows: Flexibility to image a large range of samples for life science, industrial, and clinical applications
  • Fast and reliable analysis: Acquiring quantifiable data from challenging samples for improved throughput
  • Excellent true-color reproduction

Find out more on the Leica site

 Technical Specification

Sensor type CMOS
Sensor size (diagonal). 8.92 mm
Sensor format 3072 px x 2048 px
Pixel dimensions 2.4 μm x 2.4 μm
Shutter mode Rolling, Global reset
Data interface USB 3
Mechanical interface C-mount
Exposure range 1 ms - 10 s
Frames per second 15 fps (software triggered), 21 fps (hardware triggered – available in K3M only)
Triggering M8/8-Pin connector (only K3M is triggerable)
Sensor cooling Passive
Dark noise 2.8 e- (median)
Full well capacity 14000 e-
Dynamic Range up to 72 dB
Bit depth / Colour depth 3 x 12 -bit = 32-bit RGB, 12-bit mono
Binning options 2x2
Optical filter 650 nm IR cut off filter
Operating system Windows with LAS X application
Power consumption 3 W
Operation temperature 5 °C - 40 °C



 All Technical Downloads



You don't have permissions to see thumbnails.





Features

The K3C color camera offers a very good dynamic range enabling you to capture quantifiable images for downstream analysis for many challenging samples. The 12-bit excellent color reproduction ability of the color K3C camera enables you to capture large color depth and extract more detail from your samples.

Benefits

Improve your throughput Samples of interest can be large and need to be imaged in high resolution, requiring a system capable of area scanning and image stitching. The large sensor and high frame rates make the K3C color cameras ideal for area scanning applications when combined with the LAS X Navigator and Steel/Cleanliness Expert software modules. K3C - Compatible with TWAIN, a protocol that enables communication between software and selected Leica Microsystems microscope cameras. It allows you to process images with your preferred software later on. Take advantage of your camera’s TWAIN capability to control the camera, acquire images, and transfer image data to various repositories for analysis and archiving. For example, easily store images to your Laboratory/Hospital Information Management System (LIS/HIS/LIMS).

Download Data Sheet

Download Data Sheet for Leica Microscope Colour Camera K3C
