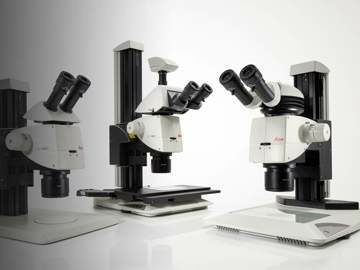

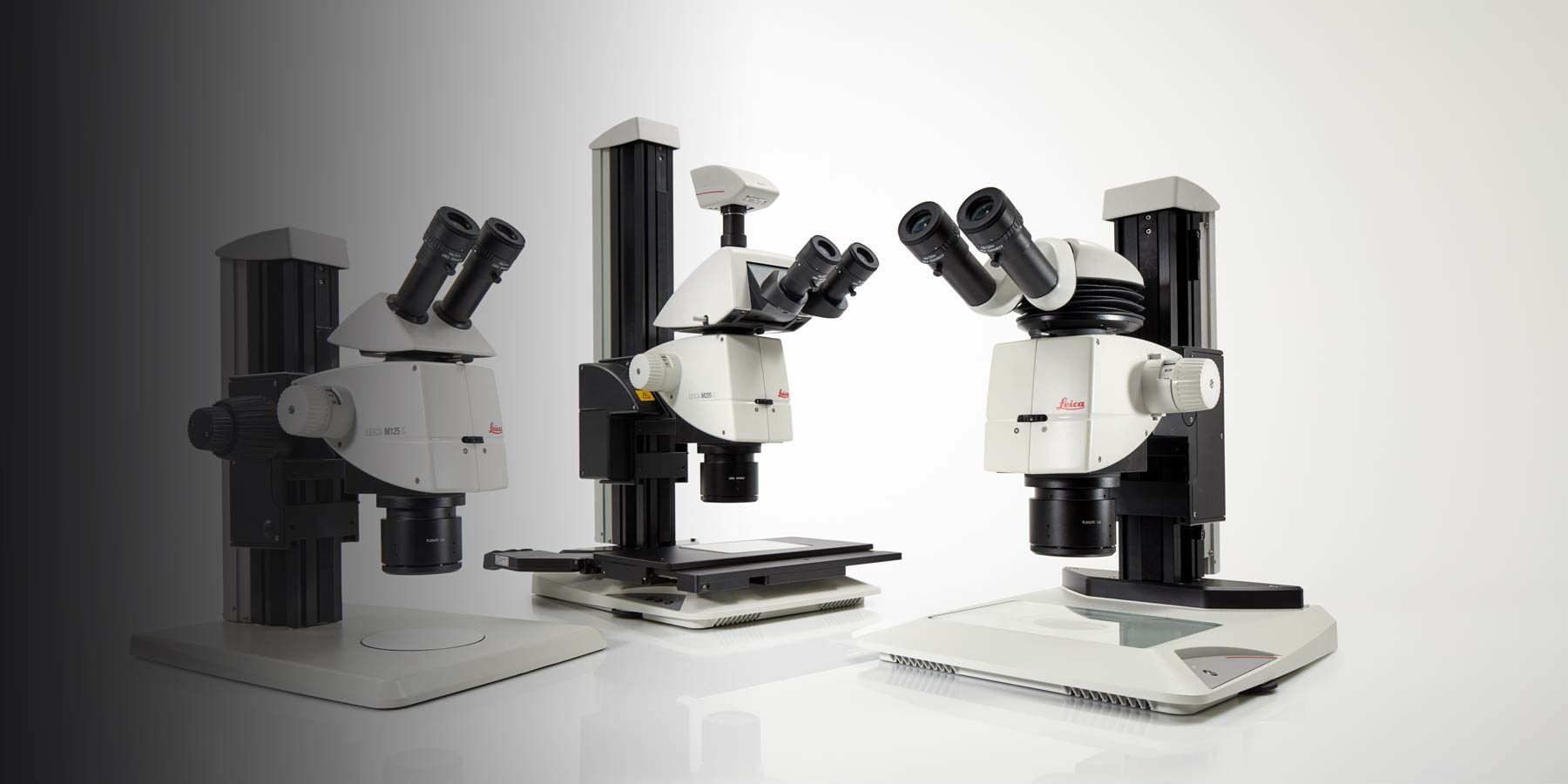

The Leica coded stereo microscopes produce high-quality images that allow measurements and can be easily and accurately repeated.
- Coded microscopes consistently deliver calibrated and comparable images

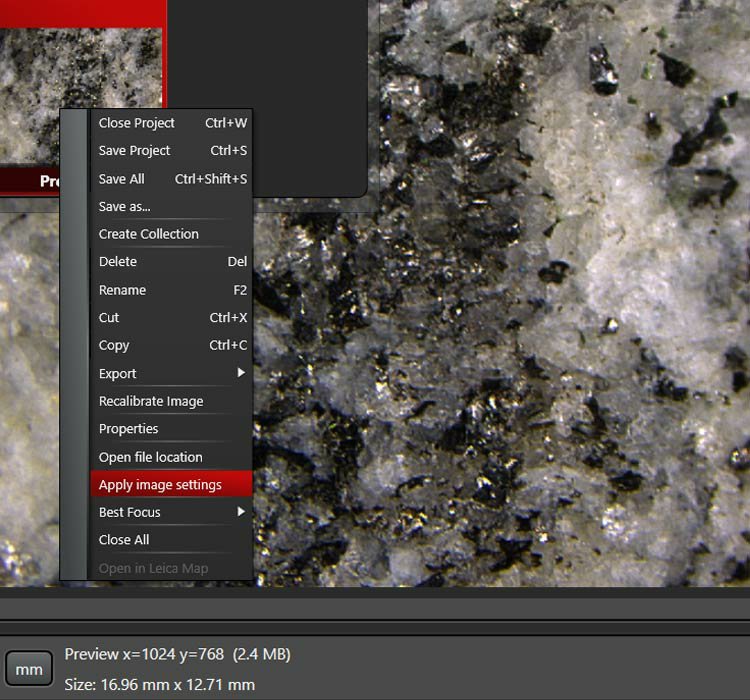

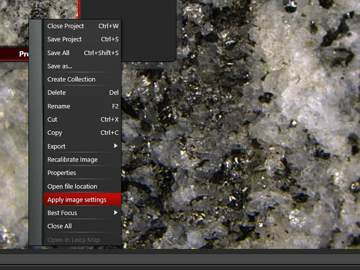

- Reproduce images in moments with the Leica “Store and Recall” function
- Fully apochromatic corrected zoom optics deliver high quality images
- Customize the microscope system to your task with the exclusive range of accessories
FusionOptics is exclusive in the M series stereo microscopes. FusionOptics uses one light beam path to deliver an image with the highest possible resolution, while the other provides an image with maximum depth of field.
FusionOptics makes it possible to have both hifh resolution and depth of field.

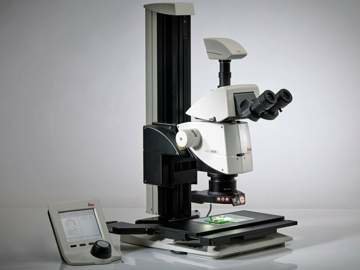

The Leica M205 C stereo microscope is a high tech machine with high resolution optics. The FusionOptics technology makes it possible and provides you an ideal 3D image to see even the smallest details.
The Leica M205 C is the world’s first stereo microscope to achieve an optical resolution of 0.952 µm.
- 20.5:1 zoom
- 7.8 x to 160 x magnification
- up to 1050 lp/mm resolution (with 2.0x objective)
Find out more on the Leica site
Technical Specification
| |
Leica M125 C
|
Leica M205 C, Leica M205 A
|
|
Zoom
|
12.5:1
|
20.5:1
|
|
Zoom Range
|
8x - 100x
|
7.8x - 160x
|
|
Resolution (1.0x)
Resolution (max)
|
432 lp/mm
864 lp/mm
|
525 lp/mm
1050 lp/mm
|
|
Visible Structure Width
|
579 nm
|
475 nm
|
|
Max NA*
|
0.288
|
0.35
|
|
Object Field
|
∅ 28.8 mm – 2.3 mm
|
∅ 29.5 mm –1.44 mm
|
|
Optical System
|
100 % apochromatic, CMO, lead-free
|
|
Coded functions
|
Zoom and iris diaphragm
|
|
ESD Rating
|
2×1011 Ω/mm2
discharge time <2 seconds
from 1 000 V to 100 V
|
* Dependent on complete microscope system.
