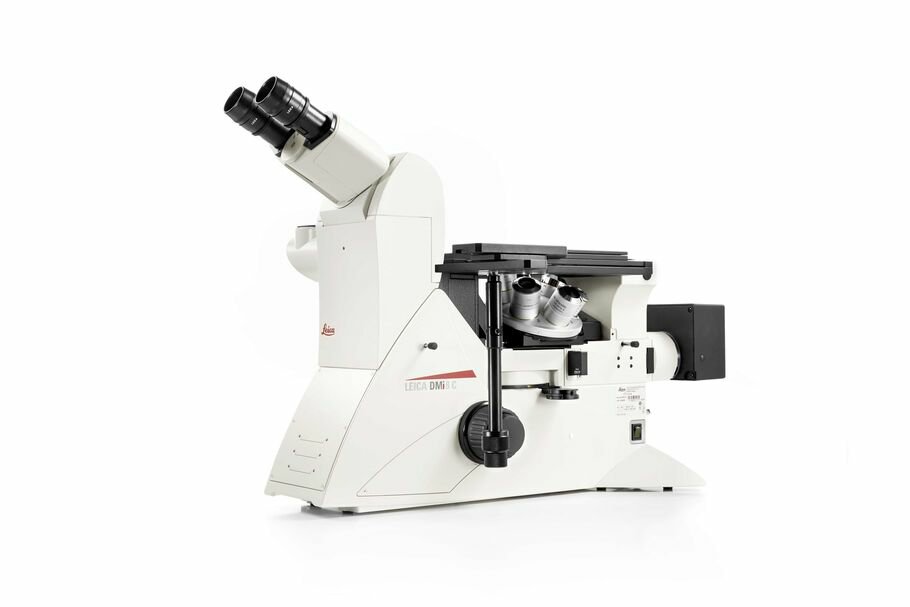

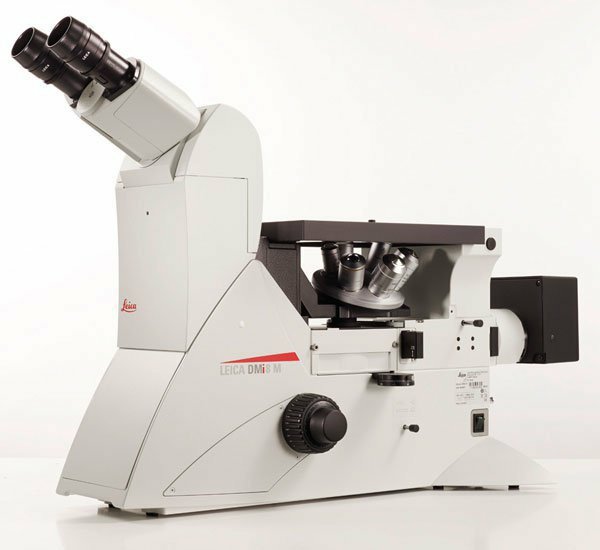

Leica DMi8 M
|
Leica DMi8 C
|
Leica DMi8 A
|
Stand
|
Power supply
|
Internal
|
Internal
|
Electronic box CTR basic or CTR advanced
|
Display
|
|
6 or 12 LED‘s
|
Options: LED’s, Function keys, Touchscreen
|
Focus
|
|
Options: Manual 2-gear
|
Options: Manual 2-gear Manual 3-gear with focus stop and torque adjustment
|
Option: Motorized Manual 3-gear with focus stop and torque adjustment
|
Objective turret
|
|
6-fold M25
|
Options: 6-fold M32 coded 6-fold M25 coded
|
Options: 6-fold M32 motorized 6-fold M32 coded 6-fold M25 motorized 6-fold M25 coded
|
Reflector turret
|
|
Fixed BF-splitter
|
2-fold reflector turret coded 6-fold reflector turret coded 6-fold reflector turret uncoded
|
6-fold reflector turret motorized 2-fold reflector turret coded 6-fold reflector turret coded 6-fold reflector turret uncoded
|
Reflected light axis
|
|
Manual Incl. centerable field and aperture iris diaphragm and manual UC- 3D illumination, slot for polarizer and additional filter slider
|
Manual Incl. centerable field and aperture iris diaphragm and manual UC-3D Illumination, slot for polarizer and additional filter slider
|
Option: Motorized Incl. centerable field and aperture pinhole illumination, slot for polarizer and additional filter slider Manual Incl. centerable field and aperture diaphragm and UC-3D illumination, slot for polarizer and additional filter slider
|
Contrasting techniques
|
Incident light (IL)
|
BF, UC-3D, DIC, Pol
|
BF, UC-3D, HDF, DIC, Pol, Fluorescence
|
BF, UC-3D, HDF, DIC, Pol, Fluorescence
|
Transmitted light (TL)
|
|
BF, Pol, Ph, DIC, DF
|
BF, Pol, Ph, DIC, DF
|
Magnification changer
|
|
|
Active on front port, manual coded: 1.5x or 2.0x
|
Active on all ports, motorized: 1.5x, and/or 2.0x
|

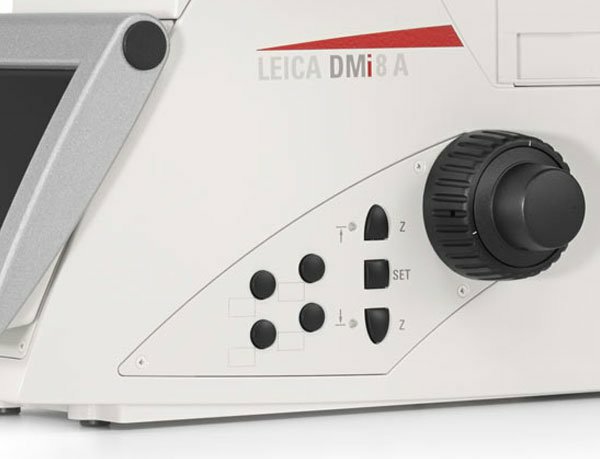

Control elements
|
Stand
|
Intensity control
|
Intensity control IL/TL switch
|
Option, dependent on configuration: Function keys on front panel Touchscreen Left: light- and contrast manager Right: 4 freely programmable function keys, Focus control
|
Smart Move
|
|
|
Control element for focus and stage movement 4 freely programmable function keys
|
STP4000
|
|
|
External 6“ touchscreen External 6“ touchscreen with xyz
|
STP8000
|
|
|
External 6“ touchscreen with xyz control and 11 freely programmable function keys
|
Stage
|
|
Fix stage with different inserts and object guide Manual 3-plate stage with different inserts Gliding stage
|
Fix stage with different inserts and object guide Manual 3-plate stage with different inserts Gliding stage
|
Motorized 3-plate stage with different inserts Scanning stage with different inserts Manual 3-plate stage with different inserts Gliding stage
|
lllumination
|
|
LED Halogen (ext. power supply)
|
LED Halogen (ext. power supply) EL6000 Hg 100W (ext. power supply)
|
LED Halogen (ext. power supply) EL6000 Hg 100W (ext. power supply)
|
