Leica DM750 P Polarization Microscope

Qty Product
Leica DM750 P Polarization Microscope
  • Price:
    $819115110111114112113121311171

Options & Related Products

Product Code
L-DM750-P-01
Main Product Image

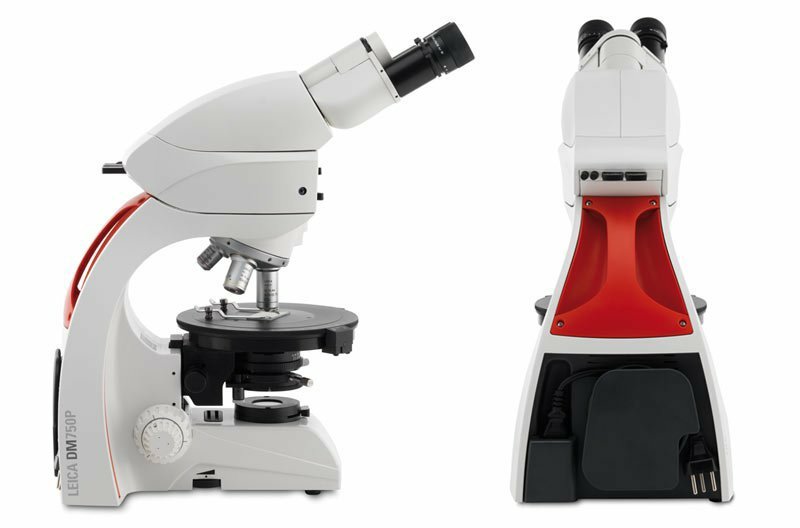

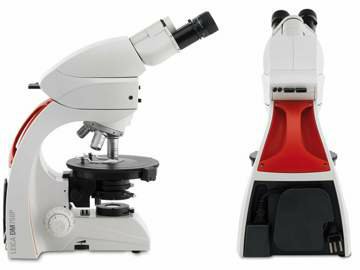

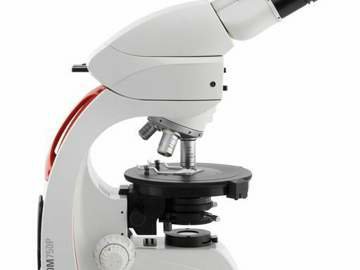

Leica DM750 P polarised light microscope

In education you need a robust tool that students can use every day. You can easily plug and play it – that’s what we call best preconditions for successful learning.

  • Get into the details of your samples with 4 objectives
  • Use the 20-mm field of view for a good overview
  • Enjoy the practical details the instrument offers: You can carry it by its handle and stow away its cable inside the instrument

You need a few components to get what you aim for in polarization. These are the most important:

    • Strain-free optics, because you need to be sure that the observed birefringence results from the sample and not from the optics
    • LED illumination is crucial, because it lights the samples homogenously and at a constant color temperature
    • Polarizers will make birefringence visible and a rotatable stage enables you to align the sample and optical axis
    • You need a Bertrand lens for conoscopic observation of the optical axis and compensators for measurement tasks

Get to know step by step in this polarization tutorial.

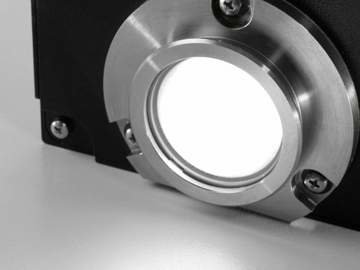

LED illumination saves you money in many ways: It consumes less energy than halogen illumination, and does not need to be replaced, causing downtime of your instrument, because it has a lifetime of up to 25,000 hours. Further advantages:

  • LED lights your samples homogeneously and at a constant color temperature, providing you with a realistic impression of your sample
  • LED adjusts light intensity fast so you can work smoothly
  • LED requires no daylight filter since the LED already provides constant light temperature of 4500 K
  • LED produces little heat, and therefore  does not need a cooling fan
  • LED lets you work undisturbed, because no cooling fan makes a noise around you

Get different sample information from different magnifications of the 6-objective nosepiece.

  • Use a 2.5x overview objective to identify macro structures in your sample
  • Change to 63x magnification for detailed investigations of optical properties by means of conoscopy
  • Switch to 100x to inspect phase reactions along grain boundaries

By the way: The nosepiece is also coded, so that it supports you intelligently.

Technical Specification

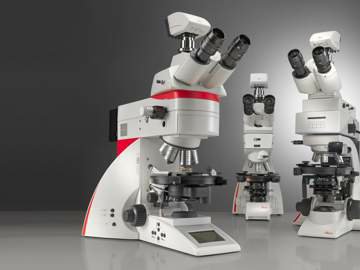

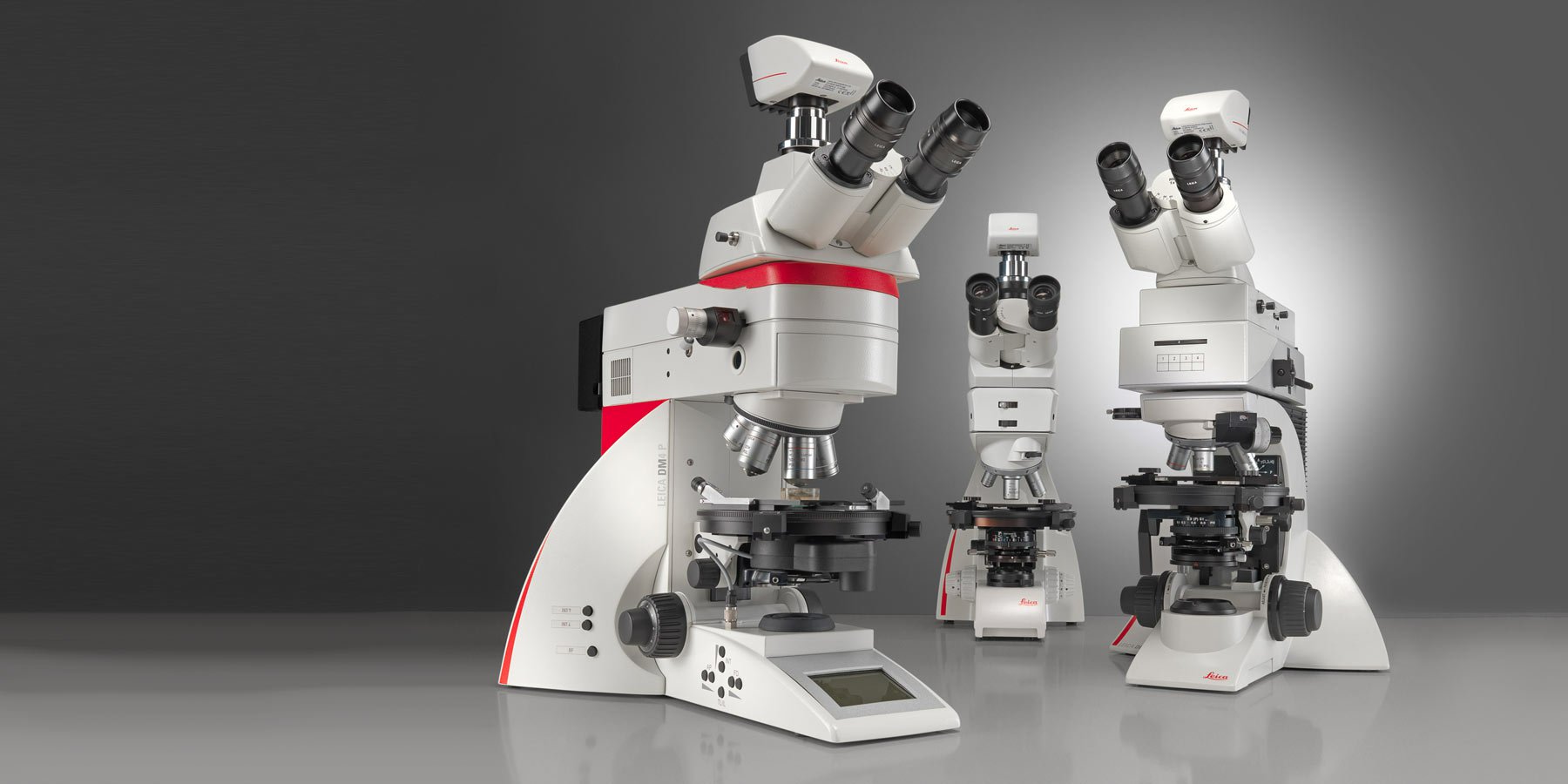

Leica DM4 P

Leica DM2700 P

Leica DM750 P

Size and weight Dependent on configuration at aproximately 25 kg.
Length: 460 mm (w/o lamphousing), width: 333 mm, height: 480 mm (depending on tube and configuration)
Dependent on configuration at aproximately 18 kg.
Length: 410 mm (with lamphousing), width: 331 mm, height: 505 mm (depending on tube and configuration)
With A/B module = 456 mm height, 220 mm width, 396 mm depth, weight 12 kg
Nosepiece 6x (M25), centerable, encoded 5x (M25), centerable 4x (M25), centerable
Eypieces, usable field of view (FOV) 25 / 22 / 20 mm FOV 22 / 20 mm FOV 20 mm FOV
Illumination incident and transmitted High-power LED High-power LED High-power LED
  Optional:
Halogen 12V / 100W
External light source for fluorescence excitation Leica EL6000
Hg lamphouses (mercury)
Optional:
Halogen 12V / 100W
External light source for fluorescence excitation Leica EL6000
Hg lamphouses (mercury)

Incident light axis Motorized, 4-fold turret, illumination and contrast manager Manual, 4-fold turret, color-coded diaphragm assistant (CDA) Manual, fixed brightfield beamsplitter
Incident light Polarization contrast
Brightfield
DIC
Fluorescence
Polarization contrast
Brightfield
DIC
Fluorescence
UC-3D illumination
Polarization contrast
Brightfield
Oblique illumination
Transmitted light axis Motorized condensor operation, illumination and contrast managment Manual condenser operation with color-coded diaphragm assistant (CDA) Manual condenser operation with color-coded diaphragm assistant (CDA)
Transmitted light Polarization contrast
Orthoscopy
Conoscopy
Brightfield
Phase contrast
DIC
Darkfield
Polarization contrast
Orthoscopy
Conoscopy
Brightfield
Phase contrast
DIC
Darkfield
Polarization contrast
Orthoscopy
Conoscopy
Brightfield
Phase contrast
Darkfield
Stage 360° rotatable polarization stage with verniers and brake
360° rotatable polarization stage with verniers, 45° clickstop position, and brake
Stage carrier for adaptation of 3rd party stages
Scanning stage 100x100
Scanning stage 75x50
Manual xy stages
360° rotatable polarization stage with verniers and brake
360° rotatable polarization stage with verniers, 45° clickstop position and brake
Stage carrier for adaptation of 3rd party stages
Scanning stage 75x50
Manual xy stages
Fixed 360° rotatable polarization stage with verniers and brake
Focus drive 25-mm stage stroke of coarse and fine drive
45-50-mm total stage stroke depending on stage and condenser type
Fine drive: 0.2 mm per turn of the knob (1 scale interval = 2 mm)
Coarse drive: 3.5 mm per turn of the knob
Motorization on request
25-mm stage stroke
xx-xx mm total stage stroke depending on stage and condenser type
2-gear focus drive (coarse / fine) with 1mm scale
3-gear focus drive (coarse / medium / fine) with 1 and 4 mm scale, torque adjustment, and adjustable upper focus stop
Motorization on request
17-mm stage stroke
Conoscopy Fully integrated coded conoscopy module, additional 1.6x magnification changer, user guidance by display feedback
Advanced conoscopy module (manual)
Bertrand lens cube
Bertrand lens module (A/B module)
Advanced conoscopy module (manual)
Bertrand lens module (AB module)
A/B module with focusable Bertrand lens
Analyzer Fixed analyzer
180° rotatable analyzer
360° rotatable analyzer
Polarizer 360° polarizer for incidend light
360° polarizer for transmitted light
Fixed polarizer with lambda plate
Fixed polarizer with 0°, 45° and 90° positions
90° polarizer with rotatable lambda plate
Polarizer in holder for transmitted light
Compensatores l, l/4, quartz plate (0.-4. Order), tilting compensatores

Downloads

 All Technical Downloads



You don't have permissions to see thumbnails.





Features

  • Get into the details of your samples with 4 objectives
  • Use the 20-mm field of view for a good overview
  • Enjoy the practical details the instrument offers: You can carry it by its handle and stow away its cable inside the instrument

Benefits

Store and recall information with coded components

  • When you change objectives, illumination intensity and aperture settings are recalled with the Illumination Intensity Control and Contrast Manager.
  • Acquired images are always calibrated due to the coded nosepiece.

Identify interesting structures

  • With the large 25-mm field of view you get a perfect overview.
  • A lower magnification rather than the detailed view often reveals the specific information you need - just think of flow or deformation structures or zonation by cooling processes.
