Adaptable setup for different samples
Find the solution that best fits your application and budget needs. There are different DVM6 configurations available.
Different DVM6 configurations
If your sample is too large or bulky for the standard DVM6 configurations, the modular DVM6 M offers you more flexibility for a wide range of applications.
With a special interface adapter, the DVM6 M zoom module can be used with selected stands from the Leica M series stereo microscopes for large (max. stage travel range: 150 x 100 mm) and tall (up to 340 mm) samples.
The DVM6 digital microscope is a versatile solution that helps you gain insights during your sample investigations, stay focussed on your work thanks to a convenient operation, and improve reliability of results with reproducible imaging conditions.
With DVM6, you can:
- Explore in a flexible way
- Investigate your samples with ease
- Rely on your results
Find out more on the Leica site
Technical Specification
System Configurations
|
DVM6 S |
DVM6 A |
| |
standard, with motorized focus drive |
advanced, motorized focus drive and motorized XY-stage |
| DVM6 zoom module |
x |
x |
| Tilting Stand |
x |
x |
| XY-Stage |
manual |
x |
| Focus drive |
x |
x |
LAS X software
| Parameter recall |
x |
x |
| HDR |
x |
x |
| Image preview |
x |
x |
| Autofocus |
x |
x |
| Multifocus images |
x |
x |
| 3D surface image |
x |
x |
| XY-Stitching |
manual |
x |
| XYZ-Stitching |
manual (no 3D) |
x |
| Annotations |
x |
x |
2D Measurement
(Distance, Area, Angle) |
x |
x |
3D Measurement
(Distance, Area, Angle, Profile, Volume) |
x |
x |
| Zoom module |
|
|
Camera
| Camera |
Image sensor |
1/2.3" CMOS, 3664 x 2748 Pixel |
| |
Image resolution |
2MP (1600 x 1200) |
| |
|
5MP (2592 x 1944) |
| |
|
10MP (3648 x 2736) |
| |
framerate (max) |
37 fps @ 1600x1200 live image |
| Autofocus |
Sensor |
CMOS based sensor |
| |
Options |
local or global |
| |
Modes |
single autofocus, continuous autofocus |
| Iris diaphragm |
motorized, software controlled |
|
Objectives (*) according ISO/DIS 18221
| PlanAPO FOV 43.75 |
working distance: 60 mm |
max. magnification: 190:1 |
max. resolution: 415 lp/mm |
| PlanAPO FOV 12.55 |
working distance: 33 mm |
max. magnification: 675:1 |
max. resolution: 1073 lp/mm |
| PlanAPO FOV 3.60 |
working distance: 5 mm |
max. magnification: 2350:1 |
max. resolution: 2366 lp/mm |
Tilting stand
| Tilt angle |
max. ± 60° |
tilt angle encoded and displayed |
| Handling |
one handed (weight compensation) |
|
| |
0° index for home position |
|
XY-Stage
|
travel range
|
70 mm x 50 mm
|
|
resolution
|
1 µm
|
|
rotation
|
max. ± 180°
|
|
specimen weight (max load)
|
max. 2 kg
|
Focus drive
| travel range |
60 mm |
| resolution |
0.25 µm (motorized) |
| |
0.50 µm (manual) |
Illumination
| ring light |
integrated in objectives for the Leica DVM6 |
| |
LED light source, software controlled |
| |
4 segments switchable |
| coaxial light |
integrated in tilting stand,
available for FOV 12.55 & FOV 3.60 objectives |
| |
LED light source, software controlled |
| transmitted light |
cable-free insert for XY-stage (optional) |
| |
LED light source, software controlled |

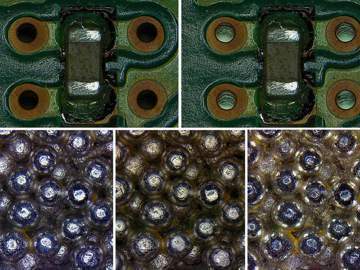

Optional accessories
| ring light adapters |
Diffusor |
| |
Low angle adapter |
| |
Polarizer |
| BLI for DVM6 |
transmitted light insert on XY-stage |
| Hand-/Footswitch |
|
| Interface module |
connect DVM6 zoom module to Leica (M series) focus column |
| Travel case |
|
