YH1200 haze meter can easily achieve ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance,haze test.Open sample bin can be vertically and horizontally tested to accommodate more samples to be tested.The YH1200 haze meter uses a PD array detector to meet the CIE V(λ)2 degree visual response. The compensation method can be used to measure the light transmittance and haze with high precision and repeatability.
Advantages of YH1810 Haze Meter
1. Double standard ISO & ASTM
Can meet the test standard requirements of different users; meet the standards: ASTM D1003/1044,ISO 13468，ISO 14782，GB/T 2410, JJF 1303-2011，CIE 15.2，GB/T 3978,ASTM E308，JIS K7105，JIS K7361，JIS K 7136
2. Multiple observation light sources
The YH1810 color haze meter provides CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy color space, as well as D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30 observation light sources, which can meet the special measurement needs under different measurement conditions.
3. Easy operation and faster and more accurate measurement

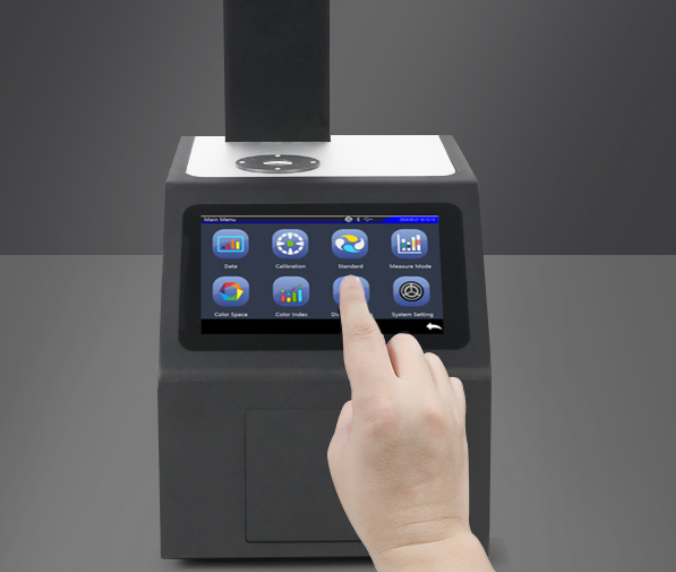

The YH1810 color Haze Meter is equipped with a large-size touch control screen, which is easy and convenient to operate. The 256 pixel dual array CMOS image sensor can realize high accuracy and repeatable transmittance and haze measurement. USB data output unit that interfaces with the laboratory system.
4. Compensation port to make the measurement data more accurate
Meet the standard of ASTM D1003 non-compensation method, ISO 13468 compensation method, it can do full light transmittance, haze test, definition test, and provide more accurate test results
5. Dynamic measurement

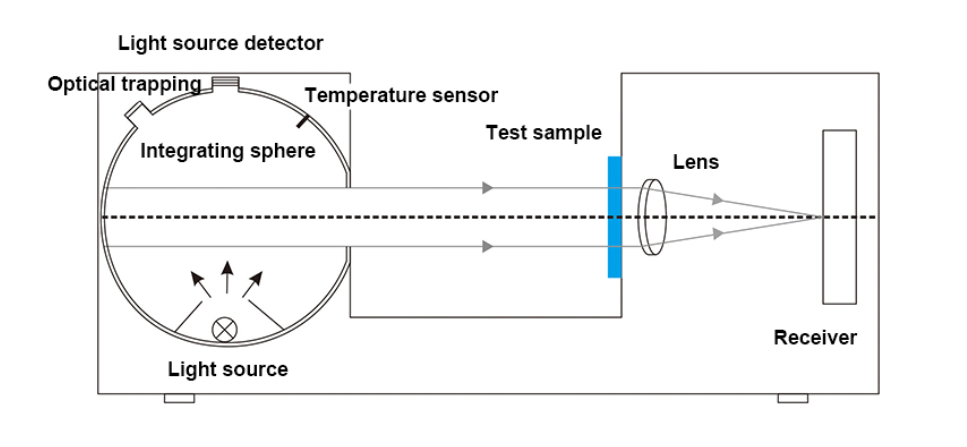

Independent light source detector and temperature sensor to monitor the light source and environmental changes at all times to ensure reliable test data.
6. Convenient measurement and wide sample adaptation
Open measurement area for vertical and horizontal testing to accommodate more samples under test
7. Quality management software
It provides powerful software for measuring and analyzing haze, color and light transmittance, which is suitable for quality monitoring and tabulating management of haze, light transmittance and color data in various industries. Data the management of users on the PC computer, compare the haze, transmittance and color differences, generate test report forms, facilitate customer customization and management.
Technical Specification
| Product Model |
YH1200 Haze Meter |
| Optical Geometry |
Transmittance：0/D (Parallel light illumination, diffuse viewing); Conform to the standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105，JIS K7361,JIS K 7136 |
| Characteristic |
The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance,haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance,haze detection. |
| Integrating Sphere Size |
Φ154mm |
| Light Source |
400nm to 700nm, combined LED light |
| Spectrophotometric Mode |
/ |
| Sensor |
The PD array detector satisfies CIE V(λ)2 degree visual response |
| Wavelength Range |
/ |
| Wavelength Interval |
/ |
| Semiband Width |
/ |
| Measurement range |
0~100% |
| Measuring Aperture |
Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size |
Thickness ＜170mm |
| Color Space |
/ |
| Color Difference Formula |
/ |
| Other Colorimetric Index |
Haze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance T(ASTM) |
| Observer Angle |
2° |
| Illuminant |
D65,A,C |
| Displayed Data |
PASS/FAIL Result |
| Measuring Time |
About1.5s |
| Resolution |
0.01unit |
| Repeatability |
Φ20mm,within 0.05 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.) |
| Inter-instrument Error |
Φ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.) |
| Dimension |
L*W*H=290X211X511mm |
| Weight |
About7.6kg |
| Power |
AC 24V, 3A Power adapter power supply |
| Illuminant Life Span |
5 years, more than 3 million times measurements |
| Display |
7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port |
USB, Print serial port |
| Data Storage |
Standard 1000 pcs,sample 20000 pcs |
| Language |
Simplified Chinese,Traditional Chinese,English |
| Operating Environment |
0~40℃（32~104°F） |
| Storage Environment |
-20~50℃（-4~122°F） |
| Standard Accessory |
Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture. |
| Optional Accessory |
Micro-printer,Test fixture, standard haze sheet, foot switch |
| Note: |
The specifications are subject to change without notice.
|
