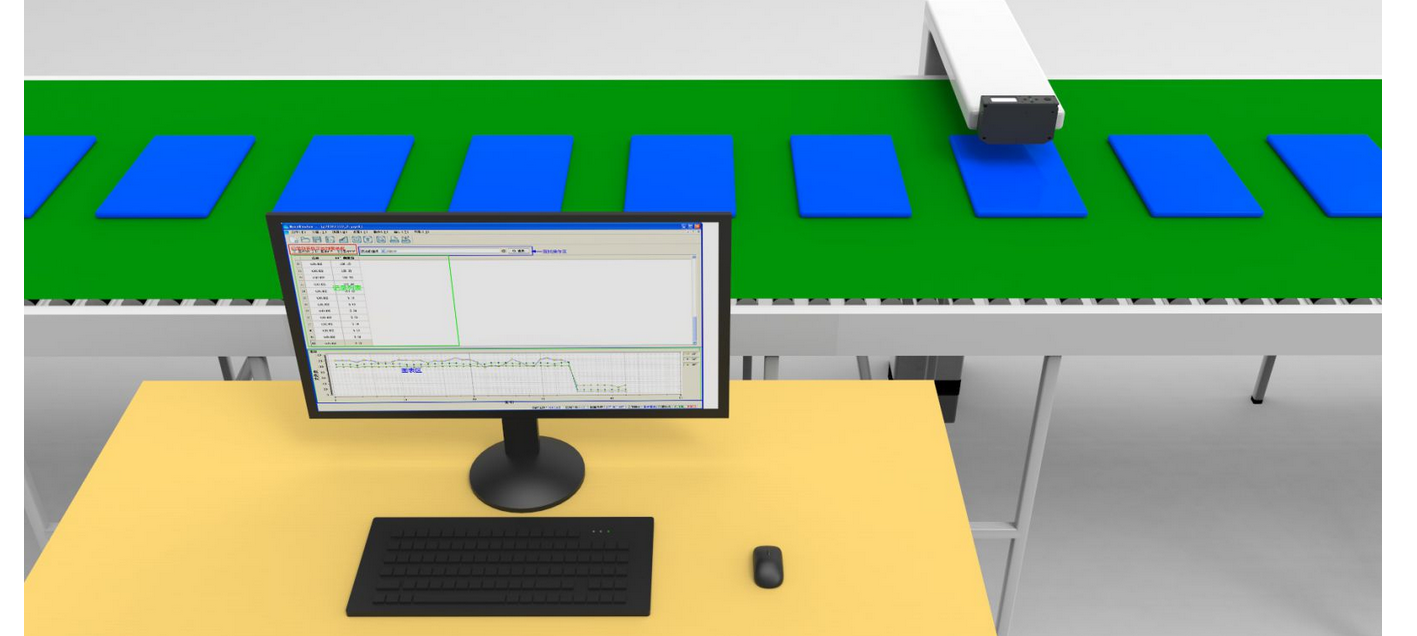

Non-contact gloss meter YG60L is an online gloss tester innovatively developed by ThreeNH. The test probe is non-contact with the sample to be tested, and it realizes non-contact testing of samples such as liquids, sauces, powders, and fragile objects. The succinct probe design allows this product to be placed anywhere in the automated production line, and can be used for online gloss measurement and quality inspection in industries such as paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, and marble . Its unique innovative design can not only provide non-contact measurement solutions directly for the production line, but also ensure stable and high-precision measurement results.
Product Features
1. Dual-angle design
The instrument has two measuring angles of 45° and 75°. It can measure at a single angle or at two angles at the same time, which makes it more versatile.
2. High measurement accuracy
The carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement , meeting the requirements of JJG 696 working gloss meter, with superior performance, which can fully match the test data of imported gloss meters.
3. Multi-mode measurement
Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .
4. Calibration function
Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.
5. Low power consumption
A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.
6. Simple operation, easy to use
The instrument is easy to operate and can be used immediately after being turned on. Data can be locked with one button. No complicated settings are required and the measurement can be completed in 0.5 seconds.
7. Lightweight and portable
The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.
8. PC quality management software
The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.
Features of Online Non-contact Gloss Meter YG60L
| Product Model |
YG60L Online Non-Contact Gloss Meter |
| Measuring Angle |
60°，
Conform to Standards: ISO 2813、 ASTM D 523、 GB/T 9754 |
| Measuring Spot(mm) |
60°:9X15 |
| Measurement Range |
60°:0~1000GU |
| Division Value |
0.1GU |
| Non-contact Distance |
Non-contact distance 10.0mm±0.1, the parallelism between the measured surface of the sample and the measuring aperture surface is 0.2 degrees |
| Features |
It can be used for gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
The non-contact test between the test probe and the tested sample realizes the non-contact test of samples such as liquids, pastes, powders, and fragile objects.
The measurement time can be as fast as 0.2 seconds, and it can communicate with other systems through Bluetooth or USB, and demonstrate routines of various communication interfaces. Software functions can be customized (according to the evaluation of the situation, additional customization fees will be generated). |
| Measuring Modes |
Basic Mode, Statistical Mode, Continuous Mode, Quality Mode |
| Measuring Time |
0.2s/1s |
| Repeatability |
0~100GU: ±0.5GU ;
100~1000GU: ±0.5%GU
Test at intervals of 5 seconds under 10mm verification tooling (ensure test distance 10 and parallelism) |
| Accuracy |
Meet the requirements of JJG 696 working gloss meter |
| Auto shutdown time |
30s、60s、90s、2m or Never Shut Down |
| Long-time Calibration |
With automatic calibration standard function and manual calibration |
| Language |
Simplified Chinese, English, Traditional Chinese |
| Storage |
35000pcs（15,000 records in basic mode and continuous mode, 10,000 records in quality control mode, and 10,000 records in statistical mode） |
| Display |
2.3 inch black and white display |
| Dimension |
140X83X38mm |
| Weight |
About 500g |
| Power Supply |
Use the USB interface power adapter |
| Data Port |
USB，Bluetooth 5.0 |
| PC Software |
Quality inspection report printing, more function expansion |
| Operation Temperature Range |
0~40℃（32~104°F） |
| Storage Temperature Range |
-20~50℃（-4~122°F） |
| Humidity |
Less than 85%RH，no condensation |
| Standard Accessories |
Power adapter, quality management software (official website download or after-sales), calibration standard plate, calibration bracket |
| Optional Accessories |
Micro Printer |
