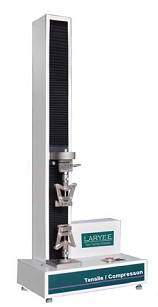

Single Column Universal Testing Machine are suitable for tensile, compression and all other special load test for non metal material for example, plastic, rubber, thread, wood, alloy, PVC, spring, electrical wire and cable, composite, profiled bar, waterproof roll, etc. Adding relative optional accessories, it is easy to achieve the test of bending, shearing, peel, friction, tearing, puncture and hardness test.
The Single Column Universal Testing Machine is calibrated as per ASTM E4, ISO 75001 international standard. By attaching different grips this machine will conform to various ISO, ASTM, EN, DIN standards.
The machine comes with high precision servo motor control system, ball screw leading and high precision reducer or synchronous belt make the machine add the load when testing. Stable structure of the machine frame makes the test and control in high accuracy.
Control system is full closed loop measuring and control system. It adequately absorbs advanced functional characteristics and integrates the latest international professionally developed measuring and control system. Control software can automatically finger out routine data, such as tensile strength, yield strength, modulus of elasticity, extend rate after rupture, non-proportional extend strength RP0.2, etc. It can adopt many kinds of controlling modes, such as constant force, constant displacement, constant deformation, and real time display many testing curves of force-displacement, force-time, and stress-strain. These curves automatically switch. Testing process control and data processing conform to the requirements of all kinds of test standard.
Standard Parts included in the Universal Testing Machine
| Control PC: |
Dell Brand (P4, 1G Memery, 80G Disk, 17”LCD) |
 |
| Control DSP card and software: |
3 Close Loop Control |
 |
| Printer: |
HP brand Color inkjet printer |
 |
| Panasonic Servo Motor: |
Built-in Motor with driver |
 |
| Extensometer: |
Gauge length 50mm, Defomraiton 50% |
 |
| Tension Test Accessories: |
Tension grips for round and flat speciman |
 |
| Compression Test Accessories: |
Round or Flat Compression Plate, Dia 150mm |
 |
| Load Cell: |
American Brand Celtron Load Cell |
 |
| High-precision Ball Screw Lead: |
Chine, Taiwan, or Germany Brand |
 |
| Photoelectric encoder: |
Chinese or Japanese brand |
 |
Optional Parts
- Bending Test Jig
- Compression Jig
- Opposite Clamping Grip
- Wdge tension Grip
- Film & Paper Tension Grip
- Shearing Test
- Adhesive Tape Tension Attachment
- Eccentric Wheel
- Dumbbell Tension
Single Column Universal Testing Machine (UTM) – Frequently Asked Questions
1. What is a Single Column Universal Testing Machine?
A Single Column Universal Testing Machine (UTM) is a compact, benchtop materials testing instrument used to measure the mechanical properties of various materials. Unlike larger dual-column systems, it uses a single vertical support (cantilever design), making it the ideal, space-saving solution for low-to-medium force applications such as tensile, compression, peel, and flexural testing.
2. Which materials can be tested using the IDM Single Column UTM?
This machine is highly versatile and specifically designed for materials that require precision at lower force capacities. Common materials include:
-
Plastics & Films: Testing for elongation and breaking point.
-
Rubber & Elastomers: High-stretch testing.
-
Packaging: Seal strength, T-peel, and bond testing.
-
Textiles: Thread strength and fabric tear resistance.
-
Paper & Wood: Bending and crush resistance.
-
Medical Devices: Testing sutures, catheters, and blister packs.
3. What types of tests can this machine perform?
The "Universal" in UTM refers to its ability to perform multiple mechanical evaluations on a single platform by simply changing the grips or fixtures. Key tests include:
-
Tensile Test: Pulling a material to determine its strength and elasticity.
-
Compression Test: Crushing a sample to find its load-bearing limit.
-
Peel/Adhesion Test: Measuring the bond strength between two surfaces.
-
Flexural/Bend Test: Assessing a material's stiffness and resistance to bending.
-
Tear & Puncture Test: Evaluating durability against sharp forces.
4. Which International Standards (ASTM/ISO) does it comply with?
IDM Instruments’ UTMs are engineered to meet rigorous international quality standards, ensuring your data is globally recognized. Common standards include:
-
ASTM D3574 (Flexible Cellular Materials)
-
ASTM D882 (Tensile Properties of Thin Plastic Sheeting)
-
ISO 7500-1 (Verification of Static Uniaxial Testing Machines)
-
ISO 527 (Tensile Properties of Plastics)
-
ASTM F88 (Seal Strength of Flexible Barrier Materials)
5. What is the maximum load capacity for this model?
Our Single Column UTMs typically come in frame capacities of 1kN or 5kN. Because the load cells are interchangeable, you can swap them out for lower-capacity cells (e.g., 50N or 100N) to achieve higher precision for very delicate materials.
6. Why choose a single-column frame over a dual-column frame?
The single-column design offers several specific advantages for modern laboratories:
-
Compact Footprint: Fits easily on a standard laboratory workbench.
-
Accessibility: The open "C-frame" design allows for easier sample loading from three sides.
-
Cost-Efficiency: It provides the same high-level accuracy as dual-column models but at a significantly lower price point for low-force applications.
-
High Travel: Ideal for high-elongation materials like rubber that stretch significantly before breaking.
7. Is the testing software included?
Yes. Our UTMs are powered by advanced Capture Software. This Windows-based interface allows for real-time graphical display of stress-strain curves, automated data calculation, and the ability to export results directly to Excel or PDF for professional reporting.
8. Does the machine come pre-calibrated?
Every IDM Instruments UTM is delivered factory calibrated and accompanied by a certificate of calibration. We recommend annual re-calibration through an ISO 17025-certified service to maintain accuracy and compliance.
9. Can I use custom grips or fixtures?
Absolutely. While we offer a wide range of standard pneumatic grips, wedge grips, and compression platens, we also specialize in custom-engineered fixtures to suit unique specimen shapes or specific industry requirements.
10. Where is this machine manufactured?
IDM Instruments takes pride in being an Australian manufacturer with over 50 years of experience. Our machines are built for durability, featuring high-precision ball screws and robust servo-motor systems to ensure years of reliable service.
