ISO 527-2 – Type 1B, ISO 527-3 – Type 1B, BS 2782-3 (Method 320B), BS 2782-10 – Type 1, ISO 6259-3 Type 1.
IDM-C0024-V

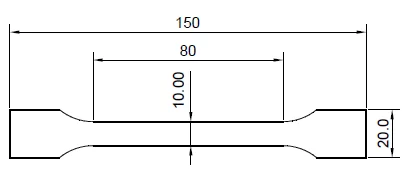

The IDM Cutting Die is engineered specifically for rigid and semi-rigid materials, serving as the benchmark tool for preparing standard tensile "dumbbell" test specimens.
Designed to deliver smooth, micro-crack-free edges, this die eliminates structural stress concentrations during sample preparation, ensuring highly accurate and repeatable mechanical test results.
From thick extrusion mouldings to thin flexible sheets and heavy-duty piping, the cutting die provides total geometry compliance across major global standards.
Precision Cutting Performance - Crafted from high-impact tool steel with advanced bevel geometries, the die effortlessly handles complex composite materials and high-density polyolefins while maintaining a long-lasting, razor-sharp edge.
-
ISO 527-2 – Type 1B - Plastics. Determination of tensile properties - Test conditions for moulding and extrusion plastics
- ISO 527-3 – Type 1B - Plastics. Determination of tensile properties - Test conditions for films and sheets
-
BS 2782-3 (Method 320B) - Plastics. Determination of tensile properties - Test conditions for moulding and extrusion plastics
- BS 2782-10 – Type 1 - Methods of testing Plastics - Glass reinforced plastics. Determination of tensile properties
- ISO 6259-3 Type 1 - Thermoplastics pipes. Determination of tensile properties - Polyolefin pipes
We can also supply custom cutting dies on request. Simply send us the size and/or testing standard you are referring to and we will be happy to help.
IDM cutting dies are chosen by companies in:
- Paper & packaging
- Plastics & films
- Textiles
- Medical materials
- Automotive interiors
- Flexible packaging
- Research laboratories
- Universities and technical institutes

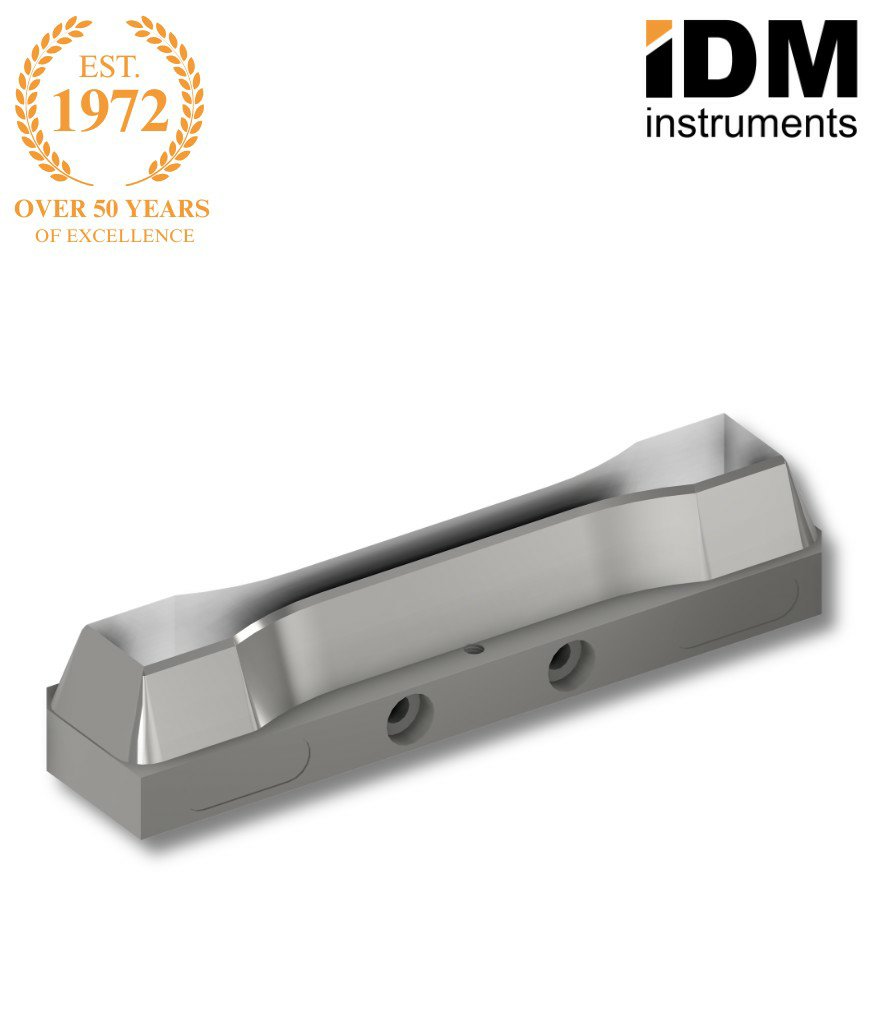

Cutting Dies Tool Steel Product Photos
The photos below show the actual instrument manufactured by IDM Instruments. Appearance may vary slightly depending on configuration and options selected.
