ASTM D412 -C, ISO 6259-3 Type 2, JIS K6251-Type 5, ISO 37 – Type 1, ISO 37-1 Type 2, ISO 527-3 – Type 5, BS 2782-3 (Method 320A), AS 1145.3 – Type 5, DIN53504 - S1, ASTM D882.

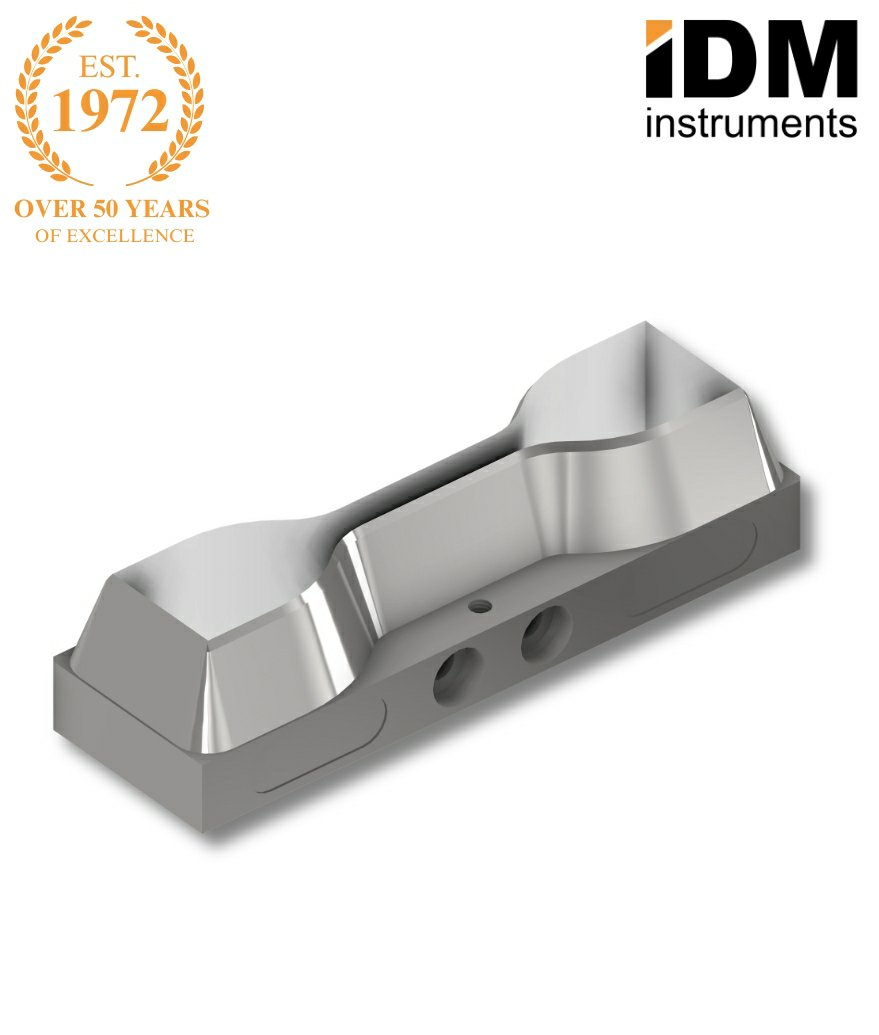

IDM-C0024-B
Built for ultimate versatility and uncompromising edge retention, the IDM Cutting Die is a crucial asset for advanced material testing laboratories.
This die specialises in producing flawlessly clean dumbbell and strip specimens, entirely free of microscopic nicks that can prematurely compromise your stress-strain data.
Optimised to span across heavy vulcanized elastomers, rigid polyolefin piping, and thin polymer films, the die provides extensive coverage for the world’s most widely referenced testing criteria
Machined from high-carbon, wear-resistant tool steel, our cutting die delivers perfect cross-sectional consistency sample after sample, protecting the integrity of your laboratory's R&D and quality control pipelines.
-
ASTM D412-C - Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers
-
ISO 6259-3-Type 2 - Thermoplastics pipes. Determination of tensile properties - Polyolefin pipes.
-
K6251-Type 5 - Rubber, vulcanized or thermoplastics – Determination of tensile stress-strain properties – Super Dumbbell Cutters
- ISO 37 – Type 1 - Rubber, vulcanized or thermoplastics – Determination of tensile stress-strain properties
-
ISO 37-1 Type 2 - Rubber, vulcanized or thermoplastics – Determination of tensile stress-strain properties
- ISO 527-3 – Type 5 - Plastics - Determination of tensile properties. Test conditions for films and sheets
- BS 2782-3 (Method 320A) - Methods of testing plastics. Mechanical properties. Tensile strength, elongation and elastic modulus
- AS 1145.3 – Type 5 - Determination of tensile properties of plastics materials – Test conditions for films and sheets
- DIN53504 - Testing of rubber - Determination of tensile strength at break, tensile stress at yield, elongation at break and stress values in a tensile test
- ASTM D882 - Standard Test Method for Tensile Properties of Thin Plastic Sheeting
We can also supply custom cutting dies on request. Simply send us the size and/or testing standard you are referring to and we will be happy to help.
Every cutting die is manufactured with extremely tight tolerances to ensure:
- Accurate sample dimensions
- Clean, burr-free cuts
- Consistent test results
- Reduced operator variation
This precision is critical for standards-based testing where even small sample inconsistencies can affect GSM, tensile, friction, bursting, or compression test results.

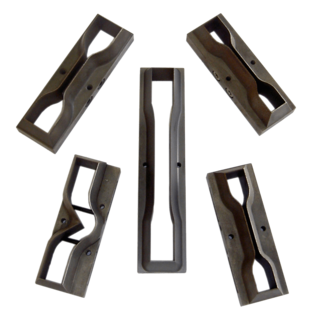

Cutting Dies Tool Steel Product Photos
The photos below show the actual instrument manufactured by IDM Instruments. Appearance may vary slightly depending on configuration and options selected.
