F5755 + IntelliMESUR® Tension / Compression Force Frame

Qty Product
F5755 + IntelliMESUR® Tension / Compression Force Frame
  • Price:
    $819115110111114112113121311171
Product Code
MARK-10-F5755 IntelliMESUR®
Main Product Image
Mark-10 Tension / Compression Test Stands - Series F

F5755 Test frame with IntelliMESUR® control panel, horizontal, Force measurement to 500 lbF [2.2 kN]. 18.0 in [457 mm] of travel

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

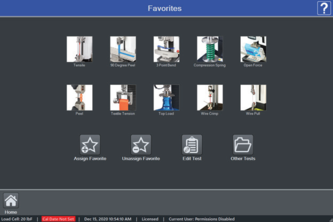

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Characterize and analyze material behavior with the optional Materials Testing Calculations Module , featuring a suite of common calculations such as tensile strength, Young’s modulus, yield point, and more.

Coefficient of Friction (COF) Measurement is also available through an optional module.

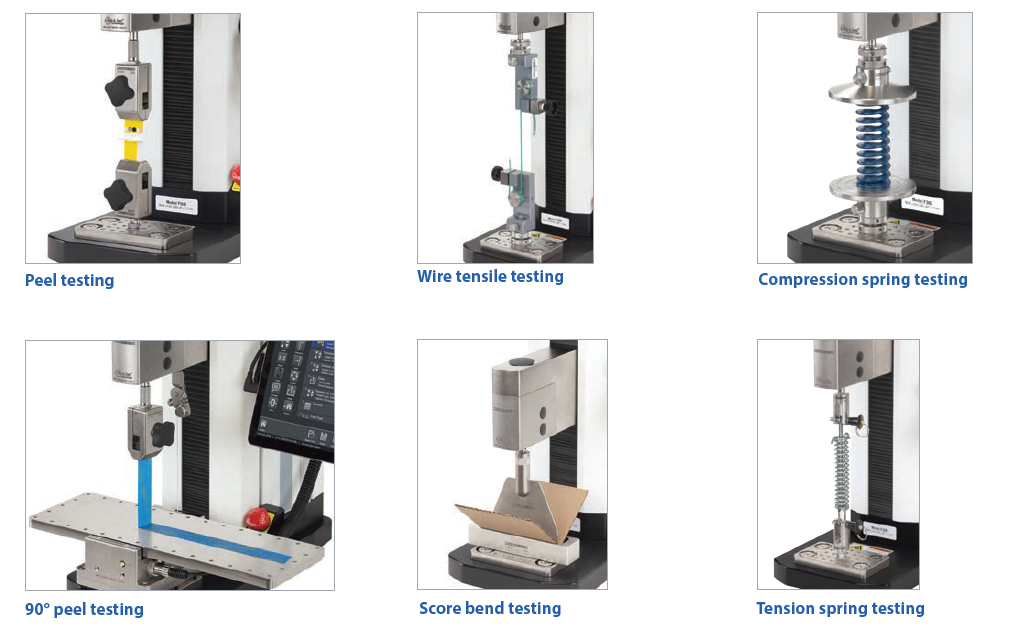

Applications of the Tension / Compression Test Stands

From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.
Applications of the Tension / Compression Test Stands


Features of the Series F - Tension / Compression Test Stands

Rigid and precise mechanical design

Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position. Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

Seamless force sensor interface

Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H, without any connection cables. Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN]. Accurate to ±0.1% of full scale. Series R07 S-beam type force sensors accommodate higher force ranges, also compatible with Plug & Test® technology. Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN]. Accurate to ±0.15% of full scale.

Modular design

Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons, such as a USB hub.

External limit switches

Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.

Tesnion and Compression - Software Analysis - EasyMESUR®

  • Load holding

  • Cycle testing

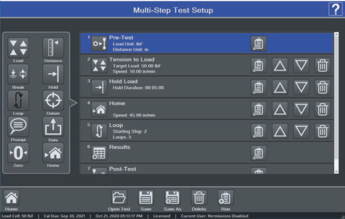

  • Multi-step testing, utilizing any combination of motion control and data collection functions

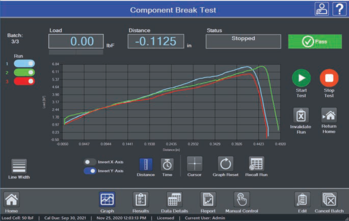

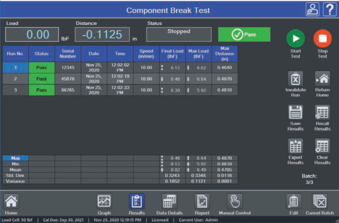

Perform individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.







Model Description
Test Frame + Pre-configured Tablet Control Panel
F105-IMT Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 100 lbF / 0.5 kN, 110V*
F305-IMT Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 300 lbF / 1.3 kN, 110V*
F505-IMT Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 500 lbF / 2.2 kN, 110V*
F505H-IMT Test frame with IntelliMESUR® pre-loaded tablet control panel, horizontal, 500 lbF / 2.2 kN, 110V*
Test Frame + Standalone Software (for customer installation on a Windows device)
F105-IM Test frame with IntelliMESUR® software, single license, vertical, 100 lbF / 0.5 kN, 110V*
F305-IM Test frame with IntelliMESUR® software, single license, vertical, 300 lbF / 1.3 kN, 110V*
F505-IM Test frame with IntelliMESUR® software, single license, vertical, 500 lbF / 2.2 kN, 110V*
F505H-IM Test frame with IntelliMESUR® software, single license, horizontal, 500 lbF / 2.2 kN, 110V*
Additional Items to Consider
IMF001 COF testing module for IntelliMESUR®
IMF002 Materials testing calculations module for IntelliMESUR®
AC1094-1 Single column extension, 6 in / 150 mm, F105 / F305 / F505
AC1094-2 Single column extension, 12 in / 300 mm, F105 / F305 / F505
AC1094-3 Single column extension, 24 in / 600 mm, F105 / F305 / F505
AC1094-4 Single column extension, 6 in / 150 mm, F505H
AC1094-5 Single column extension, 12 in / 300 mm, F505H
AC1094-6 Single column extension, 24 in / 600 mm, F505H
AC1095-1 Double column extension, 6 in / 150 mm, F105 / F305 / F505
AC1095-2 Double column extension, 12 in / 300 mm, F105 / F305 / F505
AC1095-3 Double column extension, 24 in / 600 mm, F105 / F305 / F505
AC1085 Control panel tabletop mounting kit
AC1092-1 Shield, 51.9 in height
AC1092-2 Shield, 34.4 in height
AC1093 USB hub
CERT-DS NIST-traceable certificate of calibration, distance and speed
