Digital electronic universal testing machine mainly consists of host machine, mechanical limit switch, electrical system, test accessories etc.This machine is suitable for tensile,compression for metal and nonmetal material,such as plastic,rubber,thread, composite material, profiled bar,wood,waterproof roll and all ASTM,ISO,JIS,DIN,BS,EN relative material mechanical testing standards.The machine is calibrated according to international norms requirement as ASTM E4,ASTM E83,ISO7500-1, ISO9513 and supply a full detailed calibration certificate.They are essential testing instruments for quality control section,university and college,research institution and mining enterprise quality lab.
Features:
- Using 7 inches touch screen, clear and direct, the screen can also show many contents, such as: number, date, time etc. Test force digital display, continuous adjustable speed, speed servo control from 0.01mm/min to 500mm/min by servo motor；
- Easy to install many kinds of test grips and accessories to do many kinds of test;
- With mechanical limit switch, emergency stop switch, protect accessories and sensors；
- Driver system adopt high precision ball screw, transmission smoothly, improve the transmission efficiency and accuracy of displackement；
- Adopt Panasonic servo motor drive, speed control of high precision, low noise；
- Adopt OMRON photoelectric encoder, small volume, high precision, reliable work；
- Adopt Celtron load cell, optional extensometer to test the force and extension. reading resolution can be 1/300000 of full range；
- A group sample can continuous testing, powerful test data operation function, can be convenient to modify, delete data and invoke operations；
- Have “Stop while destroy” function, when specimen is broken system automatic stop；
- Later software and USB lines can be added to implement software control to achieve more powerful functions.
Control panel:

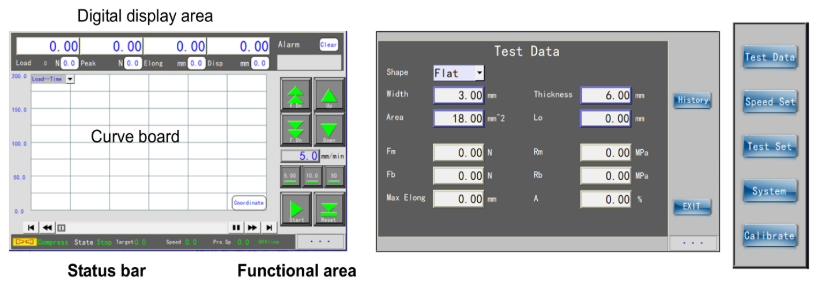

Control panel include four parts：Digital display area；Curve board；Status bar；Functional area as follow：
l Digital display area: Real-time display of force value, force peak value, deformation and displacement value from left to right
l Curve board: It can switch the display of force - time, displacement - time and deformation – time
l Status bar: Displays the current state of the machine。
l Functional area: Include Up、Down、Start、Reset and speed select
l The units of the entire measurement and control system load can be switched at will, without recalibration.
l Currently supported units have N, KN, lbf, gf, kgf,
Specification：
|
Description
|
Technical parameters
|
|
Max testing force
|
1/2/5KN
|
|
Crosshead move range
|
0-1000mm
|
|
Measuring range of force
|
2%~100%F.S
|
|
Accuracy
|
±1%(±0.5% as special order)
|
|
Resolution of force
|
1/300000 of maximum force
|
|
Resolution of displacement
|
0.01mm，Accuracy：≤±1 %
|
|
Speed range of crosshead
|
0.01~500mm/min
(Max 1000 mm/min ordered)
|
|
Valid tension space
|
750mm
|
|
Valid compression space
|
850mm
|
|
Flat sample thickness/width
|
0-10mm/50mm
|
|
Power supply
|
1P,220V±10%,50/60Hz
|
|
Working condition
|
RT10℃~40℃，relative humidity≦90%
|
|
Dimension of host machine
|
500×400×1500 mm
|
|
Net weight
|
300Kg
|
Digital Electronic Universal Testing Machine (UTM) - Frequently Asked Questions
1. What is a Digital Electronic Universal Testing Machine (UTM) used for?
A Digital Electronic Universal Testing Machine is a versatile piece of equipment used to test the mechanical properties of materials. It is primarily used to determine the tensile strength, compression, and elongation of both metallic and non-metallic materials, including plastics, rubber, wire, wood, composites, and metal bars.
2. Which testing standards does this UTM comply with?
Our Universal Testing Machine is engineered to meet rigorous international quality and safety standards. It facilitates testing in accordance with:
-
ASTM: E4, E83, and various material-specific standards.
-
ISO: 7500-1 and 9513.
-
JIS, DIN, BS, and EN relative material mechanical testing norms. Every machine is supplied with a detailed calibration certificate to ensure accuracy.
3. What are the key technical specifications of the UE1501 series?
-
Capacity: Available in 1kN, 2kN, and 5kN maximum testing force options.
-
Speed Range: High-precision speed control from 0.01mm/min up to 500mm/min (customizable to 1000mm/min).
-
Force Accuracy: ±1% (with an optional upgrade to ±0.5%).
-
Resolution: High force resolution at 1/300,000 of the full range.
-
Space: Valid tension space of 750mm and compression space of 850mm.
4. What types of materials can be tested with this machine?
This machine is a "universal" solution because it can handle a wide variety of specimens:
-
Plastics & Rubber: For elasticity and tear resistance.
-
Metals: Wire, thin sheets, and profiled bars.
-
Textiles & Threads: For tensile strength and breaking points.
-
Construction: Waterproof rolls, wood, and composite materials.
5. Does the machine include a digital display and software control?
Yes. The machine features an integrated 7-inch touch screen for real-time display of force, peak value, deformation, and displacement. It also includes a "Curve Board" to visualize Force-Time or Displacement-Time graphs. For advanced data logging and powerful analysis, users can add optional USB software control.
6. What safety features are built into the IDM Universal Testing Machine?
Safety and equipment longevity are priorities. Our UTM includes:
-
Mechanical Limit Switches: To prevent over-travel.
-
Emergency Stop Switch: For immediate shutdown during a test.
-
"Stop While Destroy" Function: The system automatically stops moving as soon as the specimen is broken to protect the load cell and sensors.
7. Can the testing units be customised?
Absolutely. The measurement and control system allows users to switch between units effortlessly without the need for recalibration. Supported units include Newtons (N), Kilo-Newtons (kN), lbf, gf, and kgf.
8. What components ensure the machine's high precision?
We use world-class components to ensure industry-leading reliability:
-
Panasonic Servo Motors: For precise speed control and low-noise operation.
-
Celtron Load Cells: For highly accurate force measurement.
-
OMRON Photoelectric Encoders: For reliable displacement tracking.
-
High-Precision Ball Screws: To ensure smooth transmission and high displacement accuracy.
9. Is this machine suitable for R&D and Quality Control?
Yes. Due to its high precision and adherence to international standards, it is an essential instrument for quality control departments, university research labs, mining enterprises, and manufacturing research institutions.
10. How can I get a quote or request a custom configuration?
You can request a quote directly through our product page or contact our team at sales@idminstruments.com.au. We offer custom solutions, including specialized grips and extended crosshead travel, to suit your specific testing requirements.
