Alternative models for DNP light boxes - Brand: 3nh Models: CC3100 Very mature products, illuminance, uniformity, color temperature and dimming performance, can completely replace DNP light boxes.
| Model |
CC3100 |
| Light source |
3100K(3100K±200k) *4 |
| Uniformity |
>95% |
| Luminous Source |
100 ~ 4400cd/㎡ adjustable |
| Illuminance |
250 ~ 10000Lux adjustable |
| Power supply |
AC230V 50/60HZ |
| Lighting method |
High Frequency lighting method 20KHz |
| Operating temperature |
10～40℃ |
| Operating humidity |
Below 80%(avoid dew) |
| Major diameter dimension |
38.5W*34H*15Dcm |
| Luminance plane dimension |
25W*19Hcm
|
Application
Transmission light box provides a special light source for camera test. It can meet the requirements: High-level lighting homogeneity and Continuous Light Intensity Adjustment, etc.

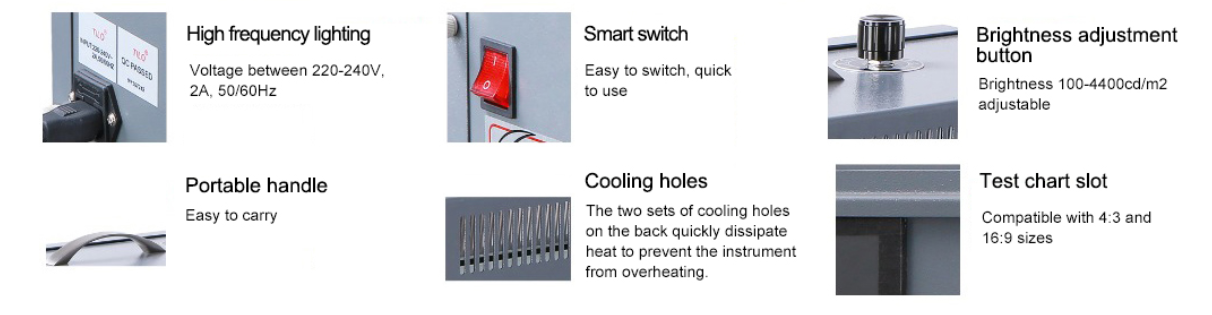

2. Operating Instruction
a. Connect the power source. Before using, please connect the correct power source with light box.
b. Open power switch, the tubes will light. You can adjust luminance by rotating adjustable switch. Turn lights up clockwise and turn lights down counterclockwise.
c. After checking, turn off the light box by pressing power switch.
Our products are widely used in mobile phones, modules, monitoring, automotive, security, photography, medical, computers, UAV(unmanned aerial vehicle), VR and industrial cameras and other electronic technology fields.
